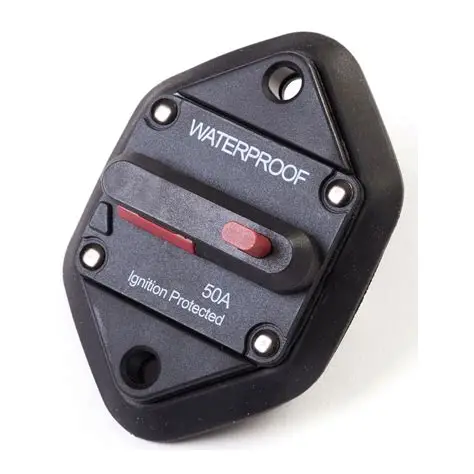

AMC HCB50P Panel Mount Circuit Breaker 50A

The AMC HCB50P Panel Mount Circuit Breaker (50A) is a high-performance thermal circuit breaker designed for demanding DC electrical systems. Ideal for marine, RV, automotive, and off-grid applications, it combines circuit protection and manual switching in a single, rugged unit.

🔧 Key Features:

• Current Rating: 50 Amps

• Voltage Rating: Up to 48V DC

• Interrupt Capacity: 3000A @ 30V DC

• Mounting Style: Panel-mount with 1/4″ (6mm) terminal studs

• Ingress Protection: IP67 – fully sealed against dust and water

• Ignition Protection: Compliant with SAE J1171, suitable for installation in engine compartments

• Operating Temperature: -32°C to +82°C

• Material: Black UL-rated 94V0 thermoplastic

• Reset Mechanism: Manual toggle lever for manual reset

• Applications: Suitable for auxiliary and accessory circuits in trucks, buses, RVs, and marine systems

🛠️ Applications:

• Marine Systems: Ideal for bilge pumps, inverters, and other critical marine equipment.

• Automotive & RV: Protects high-power circuits in vehicles and recreational vehicles.

• Off-Grid Power Systems: Ensures reliable circuit protection in solar and battery-based setups.
