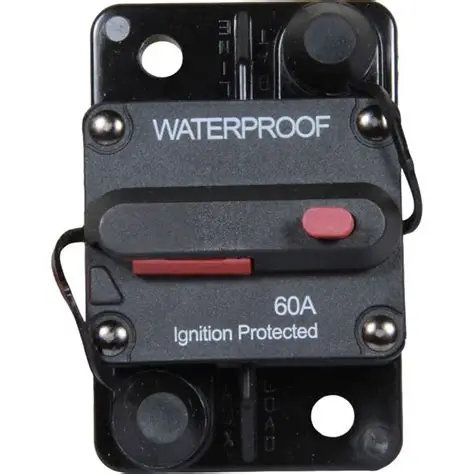

AMC HCB60S Surface Mount Circuit Breaker 60A
SKU: 001681
In Stock
The AMC HCB60S is a 60A waterproof, surface-mount DC circuit breaker with manual reset. Ideal for marine and vehicle use, it provides reliable overcurrent protection up to 48V DC.
£28.45
ex VAT £23.71
-
Description
Here’s a clear description of the AMC HCB60S 60 A surface-mount circuit breaker:
60 A rating, designed for up to 48 V DC circuits
Surface-mount design with pre‑drilled holes; installs on bulkhead or panel
Manual reset, trip‑free mechanism—lever visibly indicates open state and cannot be forced closed under fault
Waterproof, sealed (IP67) with rugged UL‑94 V‑0 thermoplastic housing; ignition-protected and weather-resistant
Bolt terminal connections via ¼″ (M6) studs, suitable for ring terminals; rated temperature range –32 °C to +82 °C
-
