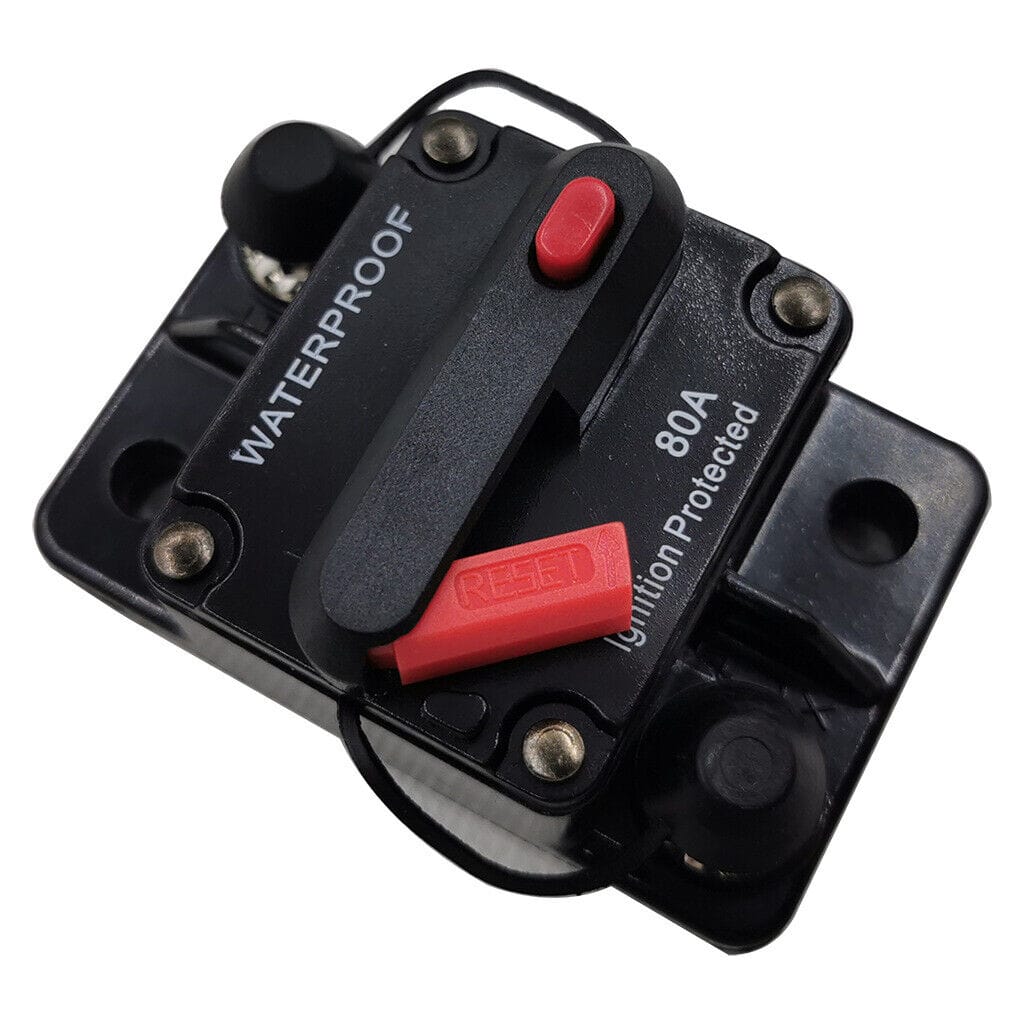

AMC HCB80S Surface Mount Circuit Breaker 80A
SKU: 000447
In Stock
The AMC HCB80S is an 80A waterproof, surface-mount DC circuit breaker with manual reset. Ideal for marine and vehicle use, it ensures safe, reliable overcurrent protection up to 48V DC.
£28.45
ex VAT £23.71
-
Description
The AMC HCB80S is a heavy-duty, surface-mount 80-amp circuit breaker designed for 12–48V DC systems. It offers manual reset functionality with a trip-free mechanism, meaning it cannot be forced closed during an overload. Its IP67-rated waterproof housing and ignition protection make it ideal for harsh environments such as marine, automotive, and industrial applications.
✅ Key Features:
Current Rating: 80A (12–48V DC)
Mounting: Surface-mount with pre-drilled screw holes
Reset Type: Manual reset with trip-free safety design
Protection: Waterproof (IP67), ignition-protected, UL 94V-0 housing
Terminals: ¼″ (M6) studs for secure ring terminal connections
Standards: SAE J1171 & J1625 compliant
-
