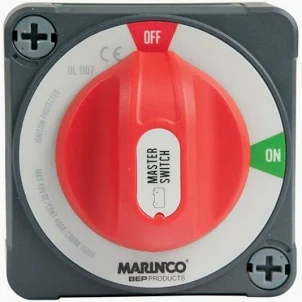

BEP 770-EZPro-Installer EZ-Mount Battery Switch (400A / On/Off)

As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front. Never has installation been so easy and cabling so accessible. With their shared interconnection height, EZ-Mount battery switches “cluster” directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. The outstanding performance and features of this powerful new generation battery switch appeal to both the installer and end user. All ratings, footprints and features of the EZ-Mount switch match the high quality of our standard switches.

The Pro-Installer EZ Mount battery switches make installation both quick and easy. Upward facing studs on the switch base allow direct access to cable connections. The front actuator knob and facia can then be fitted at any 90 degree rotated position to suit the cable runs in and out of the switch. These switches can also be used with Pro-Installer link bars to create cluster configurations to other Pro-Installer products. 770-EZ switch with On/Off operation and 2 x 10mm (3/8″) studs.

Surface mount installation

Connects to other Pro-Installer products using link bars

Stainless steel nuts & washers

Strong UV stabilized fibre reinforced plastics

IP66 rated

Tested to UL1107 Ignition Protection, CE Marked

Specifications

Rating Continuous: 400A DC. Intermittent: 600A DC. Cranking: 1500A DC

Voltage: 48V DC for 12-48V Systems

Dimensions: (LxWxH) 98 x 98 x 93mm (3.85″ x 3.85″ x 3.62″)
