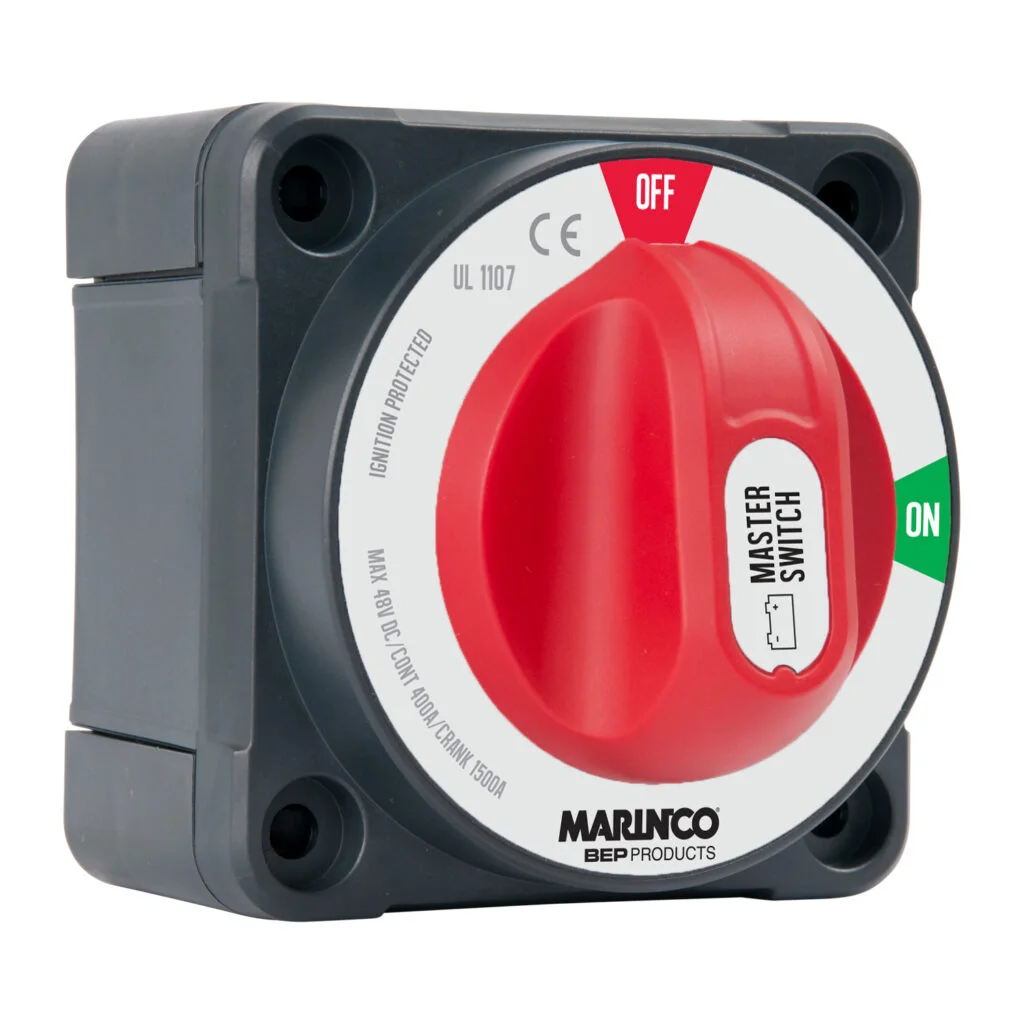

BEP 770 Pro Installer 400A On/Off Battery Switch

A powerful new generation battery switch with outstanding performance and features for both the installer and end user. Three mounting options: surface, rear panel, and front panel mounting, plus optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment.  400Amp.

Pro Installer standard mount battery switches can be surface mounted, rear panel mounted or front panel mounted with multiple cable access options for easy installation, and offer outstanding ergonomics engineered with materials to withstand the harsh marine environment. PLEASE NOTE: the standard mount battery switches are not suitable for use with link bars – use EZ mount instead. 770 Switch with On/Off operation and 2x 10mm (3/8″) studs.

Can be surface, rear panel or front panel mounted

Stainless steel nuts and washers

Industry standard footprint

Strong UV stabilized fibre reinforced plastics

IP66 rated

Tested to UL1107 Ignition Protection, CE Marked

Specifications

Rating Continuous: 400A DC. Intermittent: 600A DC. Cranking: 1500A DC

Voltage: 48V DC for 12-48V Systems

Dimensions: (LxWxH) 98 x 98 x 92mm (3.85″ x 3.85″ x 3.62″)

Check out the specifications below

• 313952-9207.pdf
• 337145-24503.pdf

Additional information
