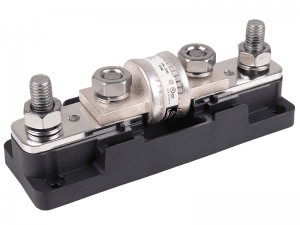

BEP 778-T2S-400 Pro-Installer Class-T Fuse Holder 225- 400A

Note: This holder is only suitable for use with fuses from 225-400A.

Class-T fuses provide the ultimate protection for high power circuits, and where extremely fast fuse blow characteristics are required. Modern batteries such as AGM and lithium technologies are capable of very high short-circuit currents which may be beyond the interrupt rating of standard circuit breakers and other fuse types.

Class-T fuses are also recommended for use with high power inverters and inverter/chargers.

This holder has tinned copper conductors and stainless steel fixing hardware for corrosion-resistance in marine environments, and comes with a clear lid to insulate and protect the fuse connections.

• Voltage rating: 50V DC
• Current rating: 400A max.
• Fuse mounting studs: 10mm (3/8″) M10
• Cable lug mounting studs: 10mm (3/8″) M10
• Base material: Black glass-reinforced nylon
• Cover material: Clear polycarbonate
• Conductor material: Tinned copper
• Fixing hardware material: Stainless steel
• Overall dimensions: 146 (L) x 48 (W) x 60 (H) mm

Part Number : BEP-778T2S400B

Check out the link below for further information

• Installation instructions
