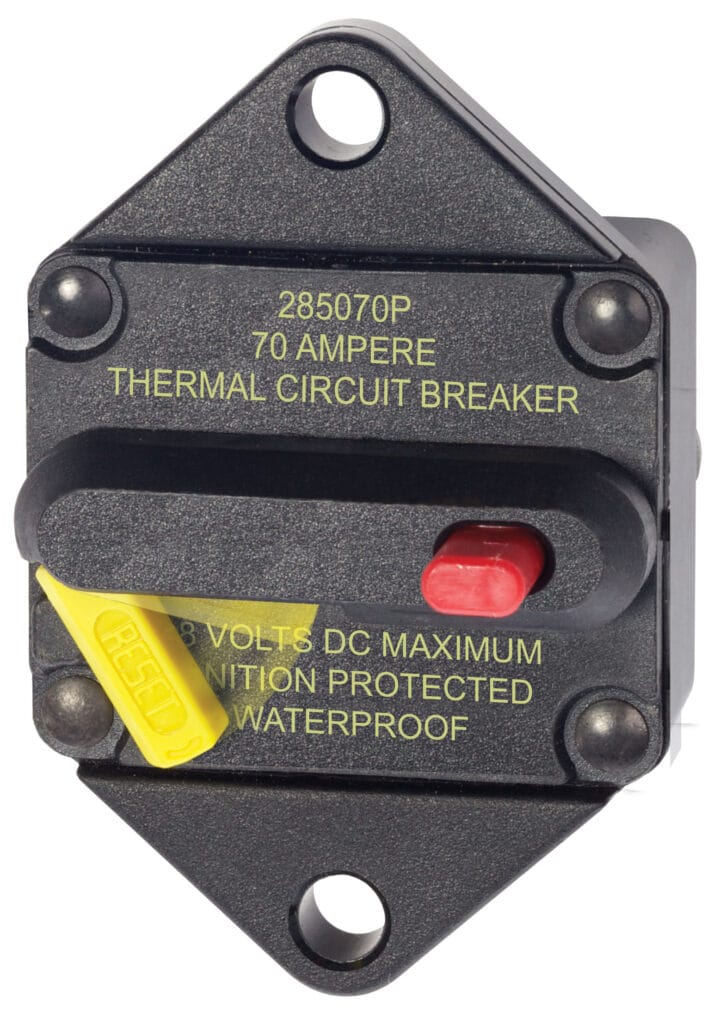

Blue Sea 7085-BSS 285 Series Breaker Panel Mount 70A

The Blue Sea Systems 7085-BSS 285 Series Circuit Breaker Panel 70A is a panel-mount circuit breaker designed for medium to high current protection, suitable for marine and vehicle applications. It combines both circuit protection and switching in one unit and is rated for 70 amps.

Key Features:

• IP67 Rating: Fully waterproof, providing durability in harsh, wet environments such as marine or outdoor settings.
• Ignition Protected: Safe for use in environments with fuels, such as boats or vehicles, ensuring it won’t cause sparks.
• Manual Trip and Reset: The breaker can be manually tripped and reset, providing flexibility to isolate circuits when needed.
• Visible Reset Lever: Allows easy visual identification of the breaker’s status, showing if the circuit has been tripped or is open.
• Trip-Free Design: Once tripped, the breaker cannot be manually held in the “ON” position, ensuring safety and preventing damage.
• Interrupt Capacity: It can handle up to 3000A of interrupting current at 48V, making it suitable for applications with medium to high current demands.
• Panel-Mount Design: Designed for front panel mounting, offering a compact, easy-to-install solution.
• M6 Stud Connections: Cable connections are made via M6 studs on the rear of the breaker, providing secure and reliable electrical connections.

This breaker is ideal for use in applications where circuit protection is needed, such as on boats, RVs, or vehicles. It is not recommended for use in high inrush current applications.
