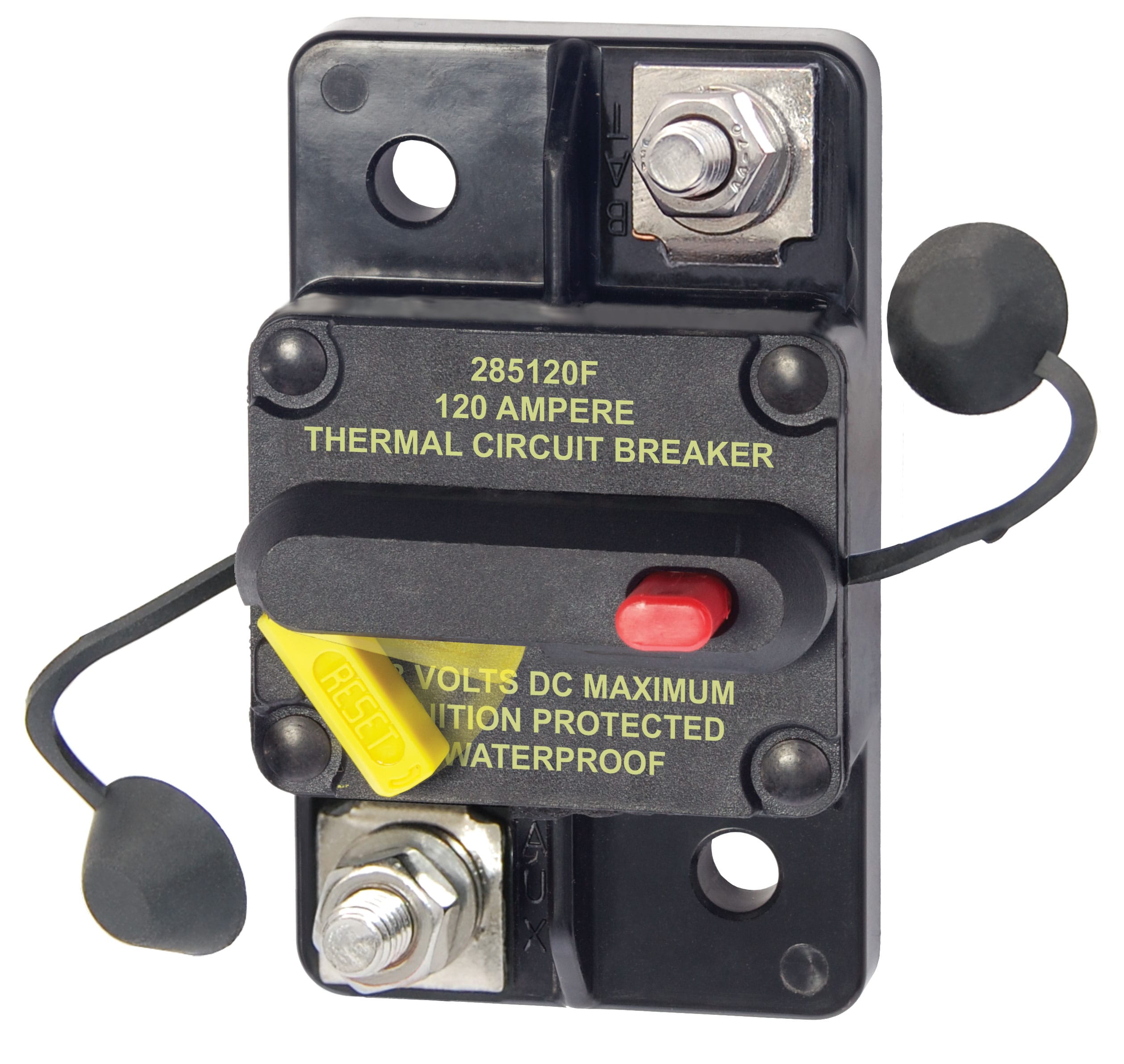

Blue Sea 7188-BSS 285 Series Breaker Surface 120A

The Blue Sea Systems 7188-BSS 285 Series Circuit Breaker Surface Mount (120A) is a surface-mount breaker designed for high-current protection in marine, RV, and vehicle applications. Rated for 120 amps, it provides reliable circuit protection in a compact, durable design.

Key Features:

• Current Rating: 120A
• Voltage: 48V DC
• Interrupt Capacity: 3000A, capable of handling large fault currents.
• Mounting Type: Surface mount, ideal for installations where front-panel mounting is not possible.
• IP67 Waterproof Rating: Fully waterproof, providing reliable performance in harsh, wet environments.
• Ignition Protected: Safe for use around fuels, preventing sparks and ensuring safety.
• Manual Trip and Reset: Offers manual circuit isolation and restoration.
• Trip-Free Design: Ensures the breaker cannot stay “ON” after being tripped, increasing safety.
• Cable Connections: M6 studs for secure rear cable connections.
• Applications: Ideal for high-current circuits in boats, RVs, and vehicles.

This breaker offers durable and reliable protection for high-current systems, ensuring safety and efficient operation in demanding environments.
