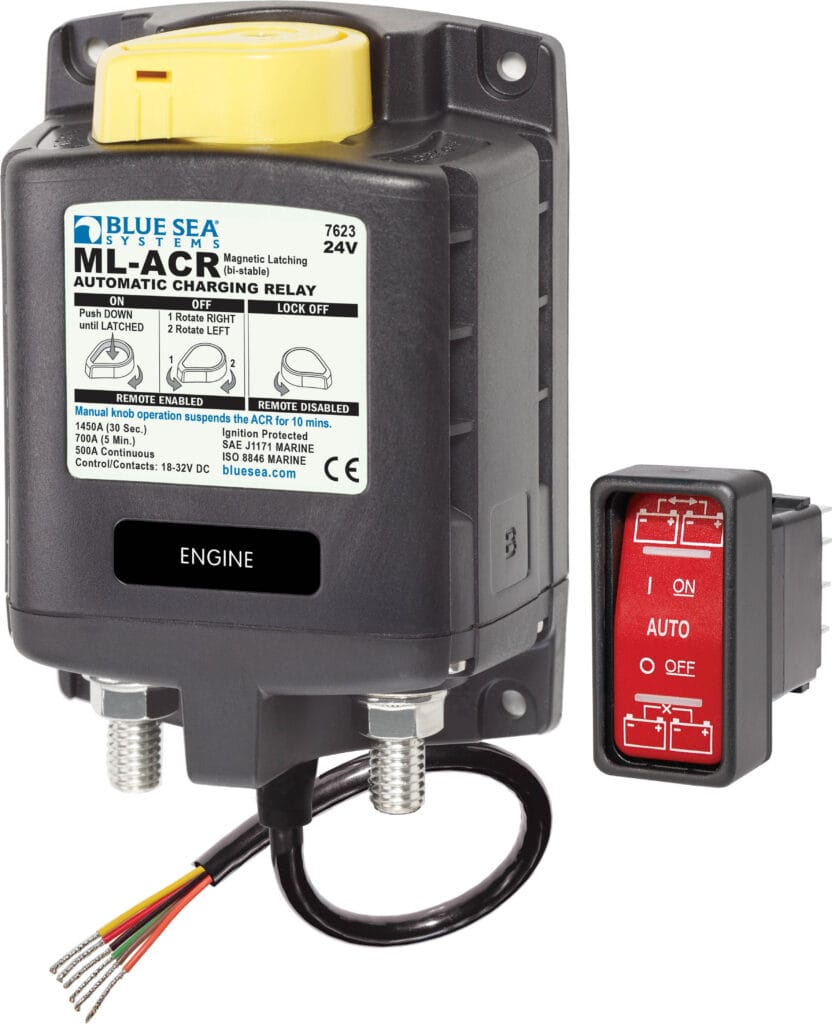

Blue Sea 7623-BSS ML-ACR Automatic Charging Relay with Manual Control – 24V DC 500A

Name: Blue Sea 7623-BSS ML-ACR Automatic Charging Relay with Manual Control - 24V DC 500A
SKU: 001607
Availability: OutOfStock

SKU: 001607

Out of stock

The 500 Amp magnetic latching relay combines and isolates batteries during charging, discharging, and engine cranking. It features manual control, dual sensing, start/engine isolation, high-output support, and durable construction with LED indicators for reliable performance.

£229.99
ex VAT £191.66

This product is available to trade account holders. Sign up for a trade account or submit an enquiry for pricing.

Description

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
Includes ML-Series Remote Control Contura Switch PN 2146
Automatically manages the charging of two large battery banks
Allows paralleling of battery banks for emergency starting
500 Ampere continuous rating to support high-output alternators
Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the “ON” or “OFF” states, and draws moderate current for very short time when changing state
Dual sensing—senses charge on both battery banks
Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Senses charging on two battery banks
LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7/8″ (22mm) stud length accepts multiple cable terminals
Silver alloy contacts provide high reliability for switching live loads
Label recesses for circuit identification

Specifications
Control Circuit Connection	Tinned Wire
Nominal Voltage	24V DC
Manual Control	Yes
Engine Isolation	Yes
Mounting	#10
Start Assist	Yes
Start Isolation	Yes
Amperage Operating Current	13mA
Amperage Operating Current when changing state	<7.0A
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 sec	1450A DC
Minimum Operating Temperature	-10° C
Maximum Operating Temperature	60° C
Cable Size to Meet Ratings	4/0 AWG x 2
Live Current Switching	300A @ 12V DC
Stud Material	Tinned Copper
Switching Cycles	100000
Terminal Ring Diameter Clearance	1.12in (28.45 mm)
Terminal Stud Length	1.50in (38.1 mm)
Terminal Stud Size	3/8″ – 16 (M10)
Wire Size	20 AWG
