Blue Sea Fuse A3T (Class T) 300 Amp 5119B-BSS

The Blue Sea Systems Class T A3T Fuse 300A (model 5119B-BSS) is a high-performance fuse designed for DC circuits, particularly in marine and RV applications.

Key Features:

• High Interrupt Capacity: Rated for 20,000 amps at 160V DC, ensuring reliable protection against short circuits.

• Fast-Acting: Provides rapid response to short circuits, minimizing potential damage to connected equipment.

• Voltage Rating: Suitable for systems with a maximum voltage of 160V DC.

• Compatibility: Designed for use with Blue Sea Systems Class T fuse blocks.

• Compact Design: Weighs approximately 0.14 kg, facilitating easy installation in space-constrained environments.

Specifications:

• Amperage: 300A

• Maximum Voltage: 160V DC

• Interrupt Capacity: 20,000A

• Weight: 0.14 kg

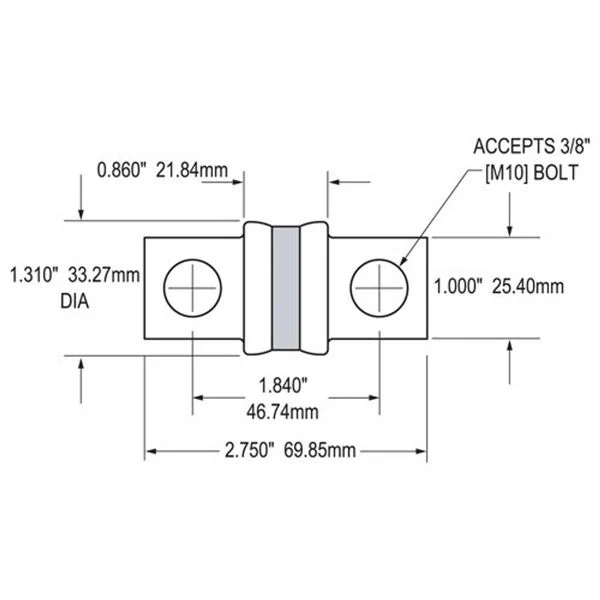

• Stud Size: 3/8″ (M10)

This fuse is ideal for protecting inverters, battery banks, and other critical DC circuits in marine and RV electrical systems.
