Blue Sea Systems 5007100 Class-T fuse block 110-200A

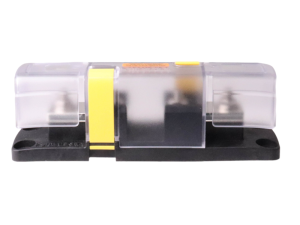

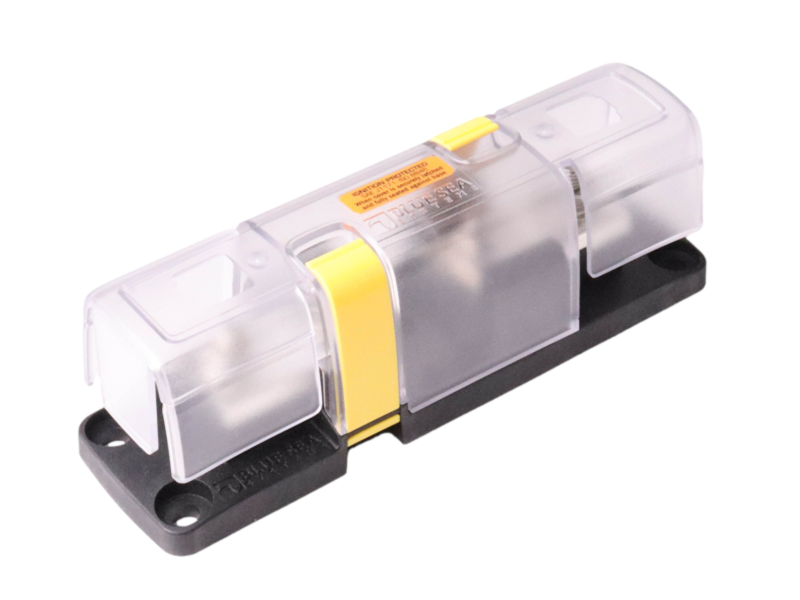

This Blue Sea Systems 5007100 Class-T fuse holder provides a safe method of fusing in the vicinity of fuels on board boats and in vehicles, thanks to its ignition protected cover design which also satisfies ABYC/USCG insulation requirements.

Class-T fuses provide the ultimate protection for high power circuits, and where extremely fast fuse blow characteristics are required. Modern batteries such as AGM and lithium technologies are capable of very high short-circuit currents which may be beyond the interrupt rating of standard circuit breakers and other fuse types. Class-T fuses are also recommended for use with high power inverters and inverter/chargers.

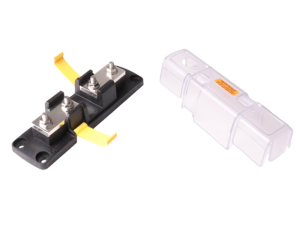

This holder has large tinned copper mounting blocks for dissipating heat, with the 4-stud design allowing for large cable lug connections without obstruction from the fuse. The stainless steel fixing hardware provides corrosion-resistance in marine environments and allows a high torque for excellent, low resistance electrical connections The cover has break-out panels to allow cable entry from multiple directions and the PBT base has high heat resistance for use in areas close to engines.

Features

• 160V max. voltage
• 160A max. current
• Ignition protected
• Stainless steel hardware
• Break-out panels in cover for multiple cable entry options

Note: Fuses not included. This holder is only suitable for use with fuses from 110-200A.

• Voltage rating: 160V DC max.
• Current rating: 160A max.
• Fuse type accepted: Class-T 110-200A
• Terminal stud size: 1/4″-20 (M6)
• Max. cable size: 120mm² (4/0 AWG)
• Terminal torque: 8.1Nm max.
• Ignition protected: Yes
• Fuse mounting block material: Tin-plated copper
• Base material: Reinforced PBT
• Cover material: Polycarbonate
• Fixing hardware material: Stainless steel
• Dimensions (with cover fitted): 177.8 (L) x 50.8 (W) x 58.4 (H) mm
• Mounting hole size: Clearance for M6
• Weight: 0.5kg
• Standards/specifications met: ISO 8846 Marine, SAE J1171 Marine
• Manufacturer’s part no: 5007100

Check the link below for more details

• Dimensional drawing
