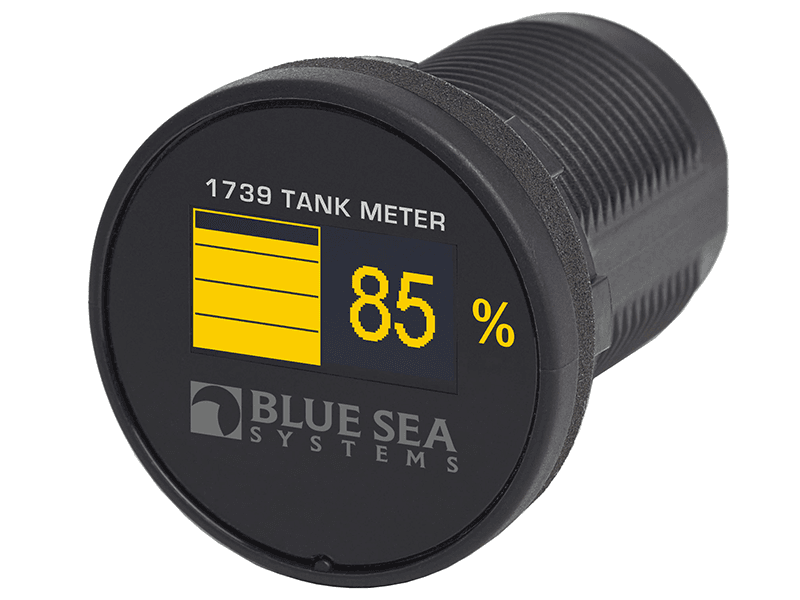

Bluesea Systems Mini OLED Tank Meter – Yellow 1739
4 in stock
Monitors essential system parameters on a bright, waterproof, daylight readable OLED screen Compact size enables mounting in any convenient location Reverse polarity protected Mounts in a common 1-1/8 in hole
£39.99
ex VAT £33.33
-
Description
Monitors essential system parameters on a bright, waterproof, daylight readable OLED screen
- Compact size enables mounting in any convenient location
- Reverse polarity protected
- Mounts in a common 1-1/8 in hole
Specifications Color Yellow Meter Tank Meter Nominal Voltage 12V DC
24V DCResolution 5% Input Voltage 8V–36V DCV Compatible Senders European: 10-180 Ohms
North American: 240-33 OhmsLifecycles 100,000 hours Operating Current 17mA Operating Temperature Range -40°C – 70°C (-40°F – 158°F) Weight 0.30lb (0.14 kg)
SchematicYou May Also Like
