Mega & Midi Fuse Power Distribution Box

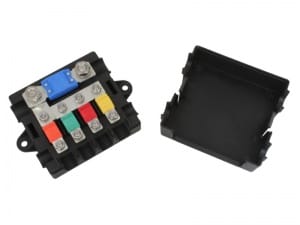

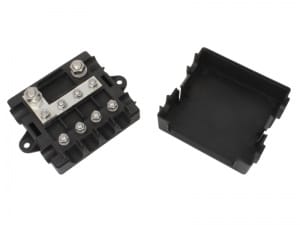

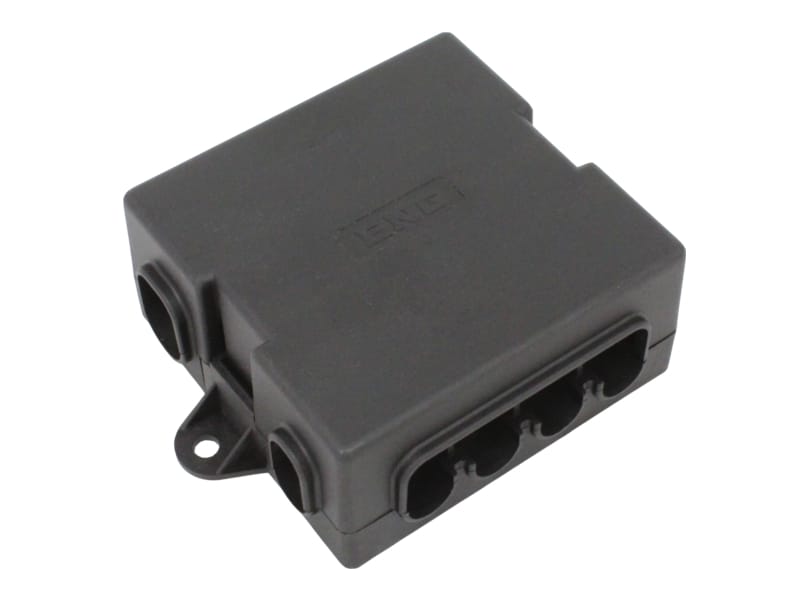

Compact and tough fuse box for distributing power to multiple electrical systems around a vehicle. The main feed in is to a mega fuse location which then feeds a further 4 midi (or strip) fuse locations via 2 copper strips. The box features a tethered, snap-on lid for quick and easy access.

The Mega fuse location has 2 cable entry options with a further 6 cable entry options for the 4 midi fuse locations, providing a number of versatile wiring configurations to suit your application.

Nuts and locking washers are provided for all fuse locations and the body of the box incorporates 2 feet for mounting to a flat surface.

Sold individually. Fuses not included.

• Box material: Black, 30% glass-filled nylon 66
• Connection post sizes: 2 x M8, 8 x M5
• Current rating – entire fusebox: 180A max.
• Current rating – per circuit: 50A max.
• Mounting hole dia: 5.5mm
• Mounting hole pitch: 110mm
• Overall dims (with lid closed):  124 (L) x 93 (W) x 44 (H) mm

Part Number : FH260158.1
