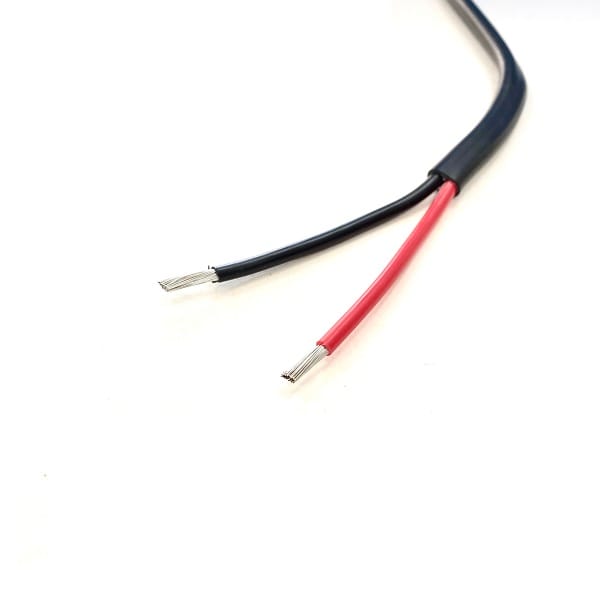

OceanFlex CM02/09 Twin Core Cable 2 x 4mm² Flat Tinned – 39 Amp sold per metre
SKU: 002027
In Stock
Ocean Flex Cable sold by the metre. Please note we have 50m drums in stock, so 100m will be sent on two drums. Feel free to order the quatnity you require
High temperature, thin wall, low voltage, wiring cables, suitable for use in automotive, marine, and other harsh environments. The tinned copper conductors make this cable more resistant to corrosion.
£2.49
ex VAT £2.08
-
Description
Ocean Flex Cable sold by the metre. Please note we have 50m drums in stock, so 100m will be sent on two drums. Feel free to order the quatnity you require
High temperature, thin wall, low voltage, wiring cables, suitable for use in automotive, marine, and other harsh environments. The tinned copper conductors make this cable more resistant to corrosion.
- Cores manufactured to ISO 6722-1:2011 (class B) 105°C
- Tinned Copper Conductors, PVC Insulated
- Suitable for use at temperatures from -40ºC to 105ºC with excursions up to 120ºC
- Twins and multicores PVC sheathed at 70ºC
- Suitable for 12v and 24v systems (maximum 60v)
- Good resistance to petrol, diesel, lubricating oils and diluted acid
- Very good resistance to moisture
- PVC insulation saves weight and offers good resistance to abrasion and cut through
- Cables are printed with the specification on the insulation
Specification
- Voltage Rating: 12/24v
- Current Rating: 39A
- Maximum Overall Diameter: 5.6mm x 9.4mm
- Conductor Specification: 2×56/0.30mm
- Conductor Cross Section: 2 x 4mm²
- Core Colours: Black, Red
- Sheath Colours: Black
