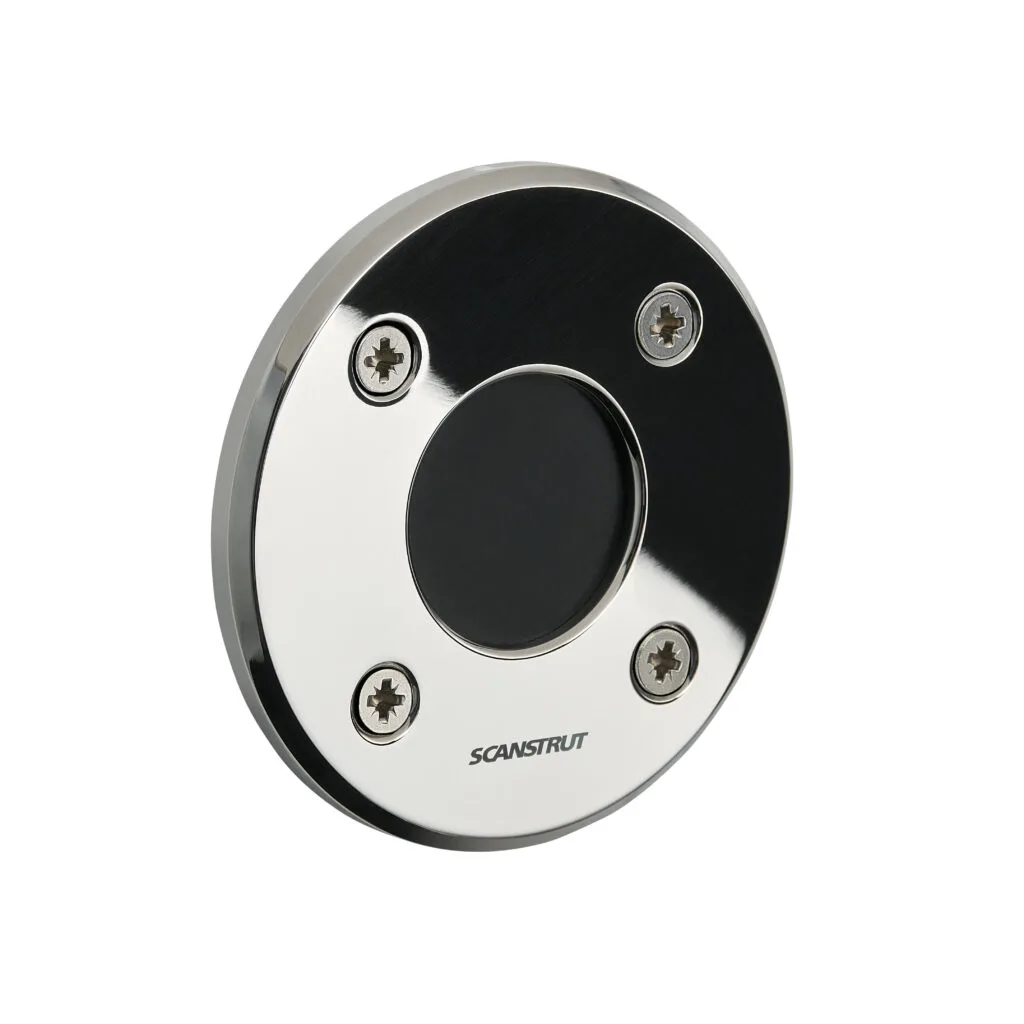

Scanstrut Low Profile 21A Stainless Steel DS-LP-21A-S – 4mm-9mm

Our innovative design is precisely engineered to accommodate cables from 4-9mm (0.15″-0.35″). This ensures a compact, low-profile solution that enhances aesthetics while guaranteeing a 100% watertight IP68 installation.

Premium Construction
Constructed from marine-grade 316 stainless steel construction, the design is not only aesthetically pleasing but also built to thrive in the outdoor environment. 316 stainless steel has exceptional corrosion resistance and durability making it the perfect choice for withstanding the elements. This ensures your installation remains intact even in the harshest conditions. Additionally, the elegant finish of our 316 stainless steel design enhances the overall appearance and functionality of your cable installation.

Low-Profile Design
Our slimline design was purpose-built to reduce the overall mounting height of the cable seal by 68% in comparison to our DS21A-P seal. This translates to a cleaner, flush, more refined look.

Watertight Installation
Achieve peace of mind with our watertight installation. The tapered bung forms a secure seal, while every unit comes

Watertight Installation
Achieve peace of mind with our watertight installation. The tapered bung forms a secure seal, while every unit comes equipped with a closed-cell base seal for 100% waterproof assurance. All models have undergone rigorous IP68 testing and approval to ensure they are outdoor-ready.

Effortless and Repeat Installations
Featuring captive nuts to simplify assembly and allow for reliable repeat installations. Each unit is supplied with both pre-drilled and blank bungs, streamlining your setup process. Additionally, the convenient split-seal option means you won’t need to remove the cable connector during installation.

Key Features

• IP68 Waterproof
• UV Resistant
• No messy sealant, ensuring a tidy finish
• Guaranteed 100% watertight seal
• Perfect for solar panels, light bars, rooftop electronics, and more
• Each cable seal is installed by using a hole saw keeping seal technology below the mounting surface

Technical Specification

Additional information
