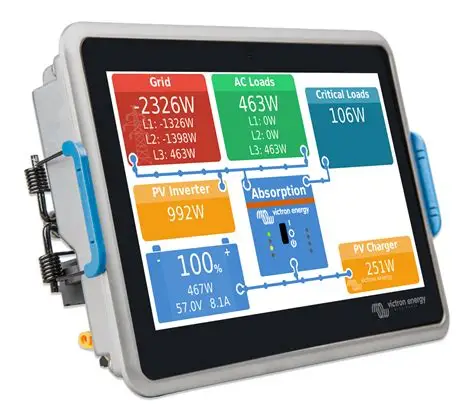

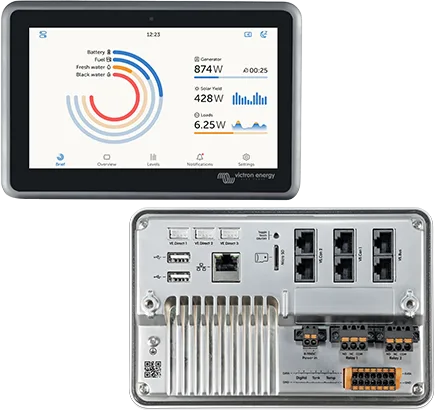

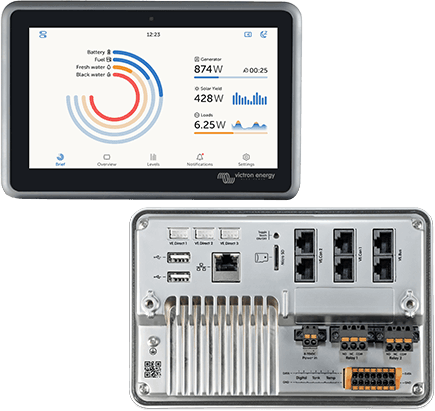

The Ekrano GX is a fully featured communication centre, built with the latest remote monitoring capabilities. Gain ultimate control with this latest addition to the GX family and feel the power of truly being in charge.
For full information and specifications go to: https://www.victronenergy.com/panel-systems-remote-monitoring/ekrano-gx
Check real-time data and analysis on your integrated 7-inch touchscreen display, running on the all-new and intuitive Venus OS. The Ekrano GX is a flexible powerhouse that will integrate into any Victron system complete with a range of hardware connectivity to suit every need. It enables you to access and control your system from anywhere, through the Victron Remote Management (VRM) portal and VictronConnect app. Enter a new era of full and dynamic system control with the Ekrano GX.
The Victron Energy Ekrano GX is Victron’s most advanced system monitoring and control device, designed to act as the central communication hub for modern energy systems. Featuring an integrated 7-inch full-colour touchscreen, powerful processing hardware, and extensive connectivity options, the Ekrano GX delivers complete visibility and control over even the most complex installations.
Built on Victron’s Venus OS, the Ekrano GX seamlessly integrates with Victron inverters, chargers, solar charge controllers, battery monitors, lithium batteries, and supported third-party devices. It provides real-time system data, detailed historical logging, advanced automation, and global remote access via the Victron Remote Management (VRM) portal.
Advanced Touchscreen Interface

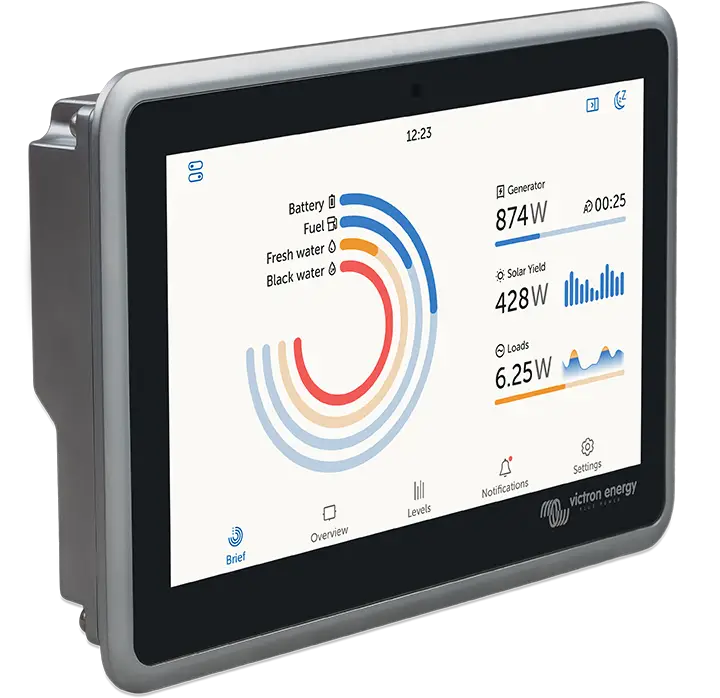

The high-resolution 7″ capacitive touchscreen (1024 × 600) offers an intuitive and responsive user experience for local monitoring and configuration. An integrated ambient light sensor automatically adjusts screen brightness for optimal visibility in all conditions, while a recessed button allows the touchscreen to be disabled to prevent accidental or unauthorised operation.
Powerful Performance & Smart Software
Powered by a fast quad-core processor and running Venus OS, the Ekrano GX is designed to handle large and complex systems with ease. It supports advanced features such as energy flow visualisation, generator control, alarm handling, data logging, and custom automation through Node-RED.
Comprehensive Connectivity

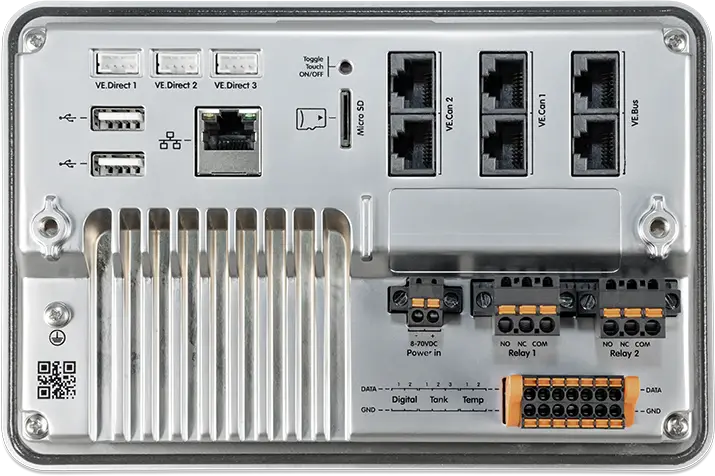

The Ekrano GX offers one of the most complete connection sets in the Victron GX range, including:
VE.Direct, VE.Bus and VE.Can ports
Ethernet, Wi-Fi and Bluetooth connectivity
USB ports for accessories and data logging
MicroSD card slot for expanded storage
Multiple digital inputs, temperature inputs and tank level inputs
Two programmable relays for generator start/stop, alarms or automation
This extensive connectivity allows the Ekrano GX to integrate effortlessly into marine, off-grid, mobile and industrial power systems.
Local & Remote Monitoring
Monitor and manage your system locally via the touchscreen or remotely from anywhere in the world using the VRM portal, web browser access, or the VictronConnect app. Receive alerts, review performance data, adjust settings and troubleshoot in real time.
Robust & Flexible Installation
Housed in a durable aluminium enclosure, the Ekrano GX is designed for demanding environments. It supports flush or panel mounting and offers IP54 front-panel protection when correctly installed, making it suitable for marine, vehicle and off-grid applications.
Ideal Applications
Off-grid solar power systems
Marine electrical systems and glass-bridge integration
Campervans, RVs and mobile power systems
Hybrid generator and ESS installations
Commercial and industrial energy monitoring
Key Benefits
Integrated 7″ touchscreen display
Centralised system control and monitoring
Extensive Victron and third-party compatibility
Global remote access via VRM
Advanced automation and data logging
Reliable performance in demanding environments
- Supply voltage: 8-70V DC
- Power draw (display on): 6.2W @12V
- Power draw (display off): 2.6W @12V
- Relay: 2 x NO/NC
- VE.Direct ports (always isolated): 3 (max. 25 devices)
- VE.Bus (always isolated): 1 with 2 paralleled RJ45 sockets
- VE.Can 1: Yes (isolated)
- VE.Can 2: Yes (non-isolated)
- Ethernet: Yes
- W-Fi: Yes
- Bluetooth Smart: Yes
- USB host ports: Yes (2 x USB-A max. 1.5A@5V combined)
- MicroSD Card Slot: Yes SDHC cards up to 32GB max.
- Resistive tank level inputs: 3
- Temperature sense inputs: 2
- Digital inputs: 2
- Display resolution: 1024 x 600 pixels
- Display max. backlight brightness: 1000 cd/m2
- Display dimming: Yes (auto or manual)
- Touch toggle on/off button: Yes (recessed on rear)
- Overall dims: 124 (H) x 187 (W) x 29.8 (D) mm (excluding mounting hardware and connectors)
- Mounting: Panel integrated flush mount or blind mount with included mounting hardware
- Operating temperature range: -20°C to +50°C
- Buzzer: Yes
- Protection rating – front: IP54 when installed with steel bracket, IP31 when installed with springs
- Protection rating – back: IP21
