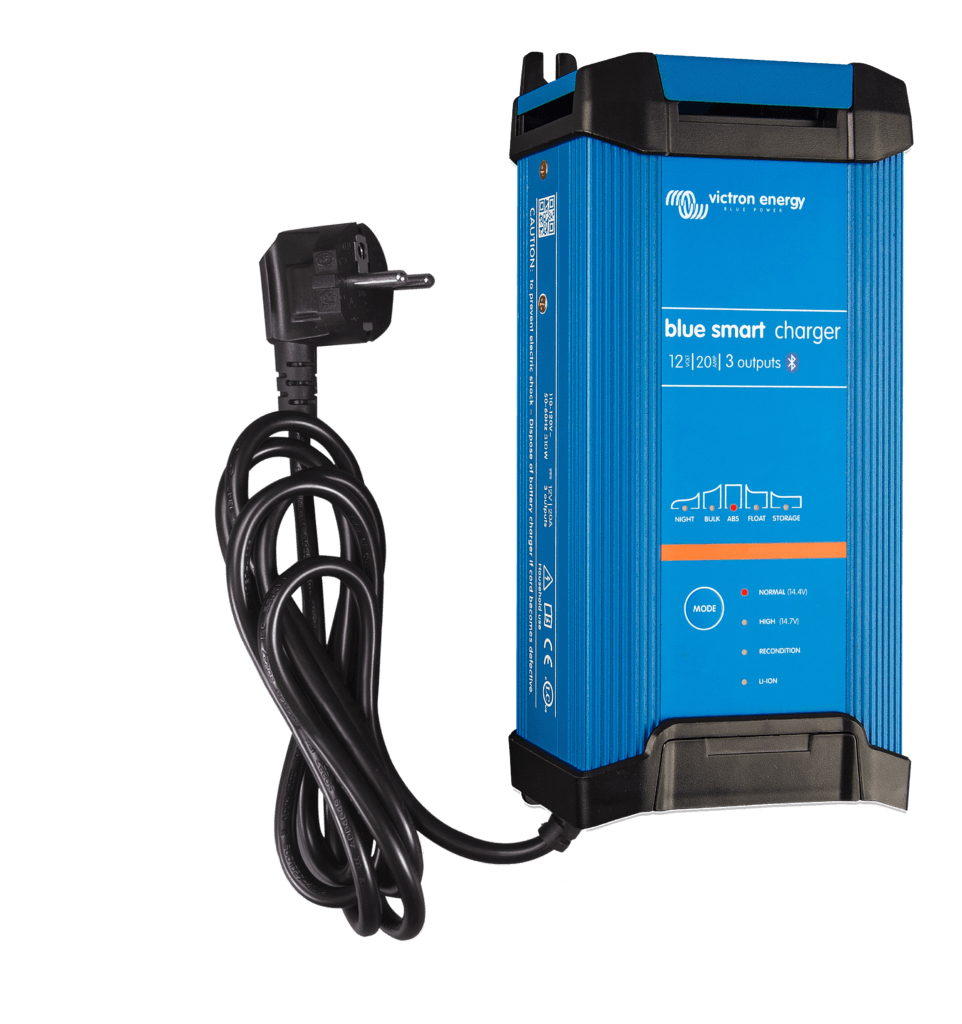

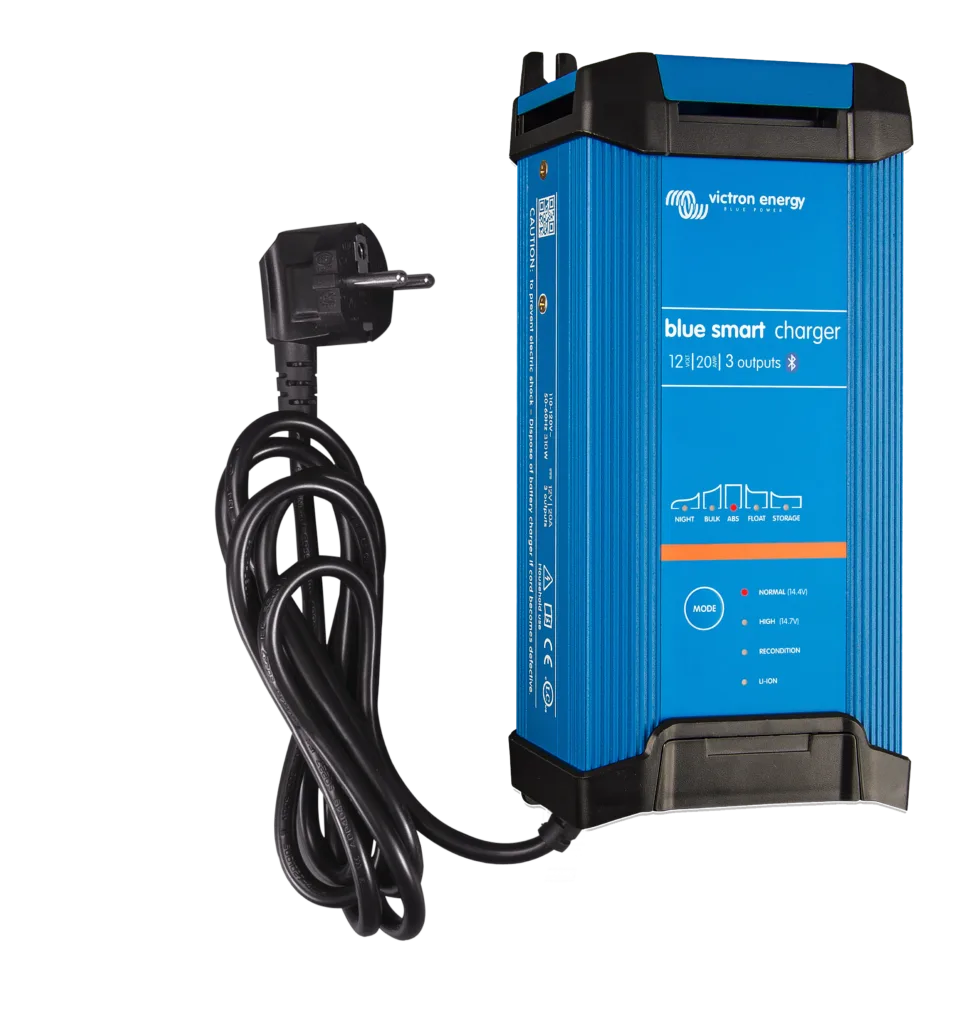

Victron Energy Blue Smart IP22 Charger 12/20(3) 230V UK BPC122043022

This Victron Product benefits from a 5 year warranty

This product is part of the Smart Range which means that it has Bluetooth enabled in it. This connects to the Victron Connect App.

Datasheet-Blue-Smart-IP22-Charger-230-VAC-EN

Victron Energy Blue Smart IP22 Charger 12/20(3) 230V UK BPC122043022 is the new professional battery charger with built-in bluetooth.  The Blue Smart IP22 Charger can be used on devices in your workshop. It is also suitable for motor vehicles, such as (classic) cars, motorbikes, boats, and camper-vans.

Key Features:

A key feature of the Blue Smart IP22 Charger 12/20 (3) is the Bluetooth Smart wireless solution to monitor voltage and current. It can change settings and update the charger when new features become available. High efficiency Up to 94% efficiency, the Blue Smart IP22 Charger 12/20 (3) generates up to four times less heat when compared to the industry standard.

Once the battery is fully charged, power consumption reduces. This is five to ten times better than the industry standard.

Fully programmable charge algorithm Absorption, Float and Storage voltages as well as the Recondition setting and the temperature compensation value can be programmed with the Bluetooth app. After enabling the Expert mode, the app will allow changing practically all parameters and time limits used by the charge algorithm.

Adaptive 6-stage charge algorithm: test €“ bulk €“ absorption €“ recondition €“ float €“ storage.

The IP22 Charger 12/20 (3) features a microprocessor controlled adaptive battery management. The adaptive feature will automatically optimise the charging process relative to the way the battery is being used.

Also charges Li-on batteries. Li-on batteries are charged with a simple bulk €“ absorption €“ float algorithm.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully Li-on battery with internal disconnect function. NIGHT and LOW setting When in NIGHT or LOW mode, the output current is reduced to max. 50 % of the nominal output and the IP22 Charger will be totally noiseless.

The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually. Specifications Brand Victron Energy Manufacturer Part Number BPC122043022
