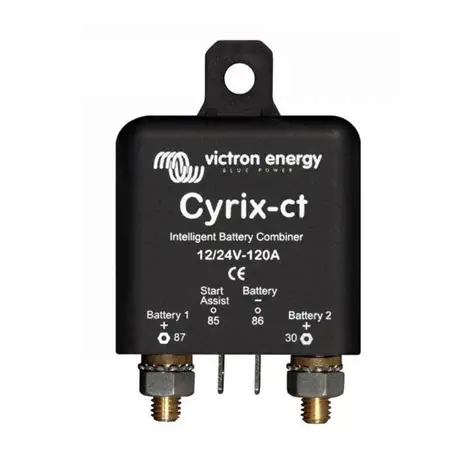

Victron Energy Cyrix-CT: 12/24V 120A Smart Battery Combiner (CYR010120011R)
SKU: 003316
In Stock
The Victron Cyrix-CT 12/24 intelligently connects and disconnects batteries for parallel charging, protects against overload, prioritises the starter battery, and operates efficiently with minimal voltage loss in marine, RV, and off-grid systems.
£38.64
ex VAT £32.20
-
Description
The Cyrix-CT 12/24 is a microprocessor-controlled heavy-duty relay that automatically connects batteries in parallel when one reaches a pre-set charge voltage and disconnects when voltage drops below float level. It’s an excellent replacement for diode isolators, offering virtually no voltage loss, so alternator or charger output does not need to be increased.
Key Features
Intelligent battery monitoring: The Cyrix-CT uses advanced software to monitor voltage trends, preventing unwanted switching even under high current loads or large discharged battery banks.
Overload protection: Automatically disengages if contact temperature becomes excessive and reengages after cooling.
12/24 V auto-ranging: Detects system voltage automatically for flexible installation.
Starter battery prioritisation: Connects accessory batteries only when the starter battery reaches the set voltage, ensuring reliable starter power.
Bidirectional sensing & dual power supply: Monitors both batteries and can operate even if one battery voltage is low.
Emergency parallel connection (Start Assist): Can manually connect batteries via push-button or switch for temporary support if the starter battery is discharged or damaged.
The Victron Cyrix-CT 12/24 ensures safe, efficient, and reliable charging of multiple batteries in marine, RV, and off-grid systems, keeping your starter and accessory batteries optimally charged.
-
