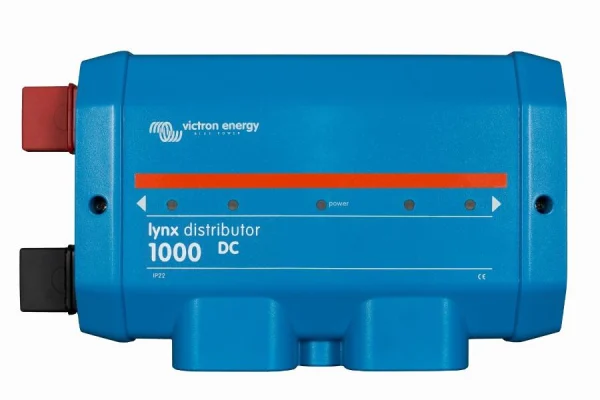

Victron Energy Lynx Distributor – LYN060102000

The Victron Lynx Distributor is a modular DC bus bar designed to hold up to four DC fuses. It features built-in monitoring for each fuse, with front-facing LEDs that indicate fuse status. This unit is part of Victron’s modular Lynx distribution system.

It includes both positive and negative bus bars, offering connections for four separate DC loads, equipment circuits, or distribution groups. Each connection point is designed to house a MEGA fuse for individual circuit protection.

An optional feature allows for LED indication of blown or missing fuses. To enable this functionality, the Lynx Distributor must be connected to a Lynx Shunt, which provides the required 5V power (from its 8–70V DC input range) for the distributor’s internal electronics.

Connection between the Distributor and the Lynx Shunt is made using an RJ11 cable, which is included in the package. The Lynx Shunt features two RJ11 ports, either of which can be used for connection.

• Normal Operation: A single green LED is illuminated.

• Fault Condition: If a fuse is blown or missing, both the central LED and the corresponding fuse LED will turn red.

• Unused Circuits: Dummy fuses may be needed in unused slots to prevent false red LED indications.
