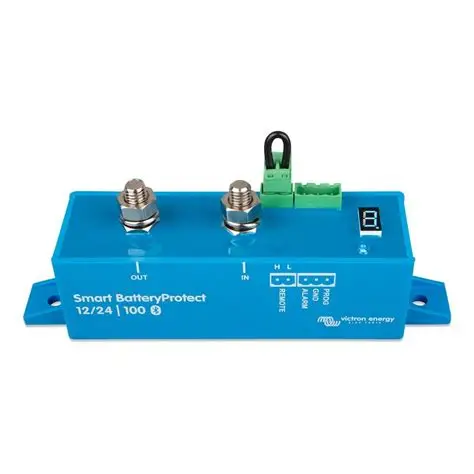

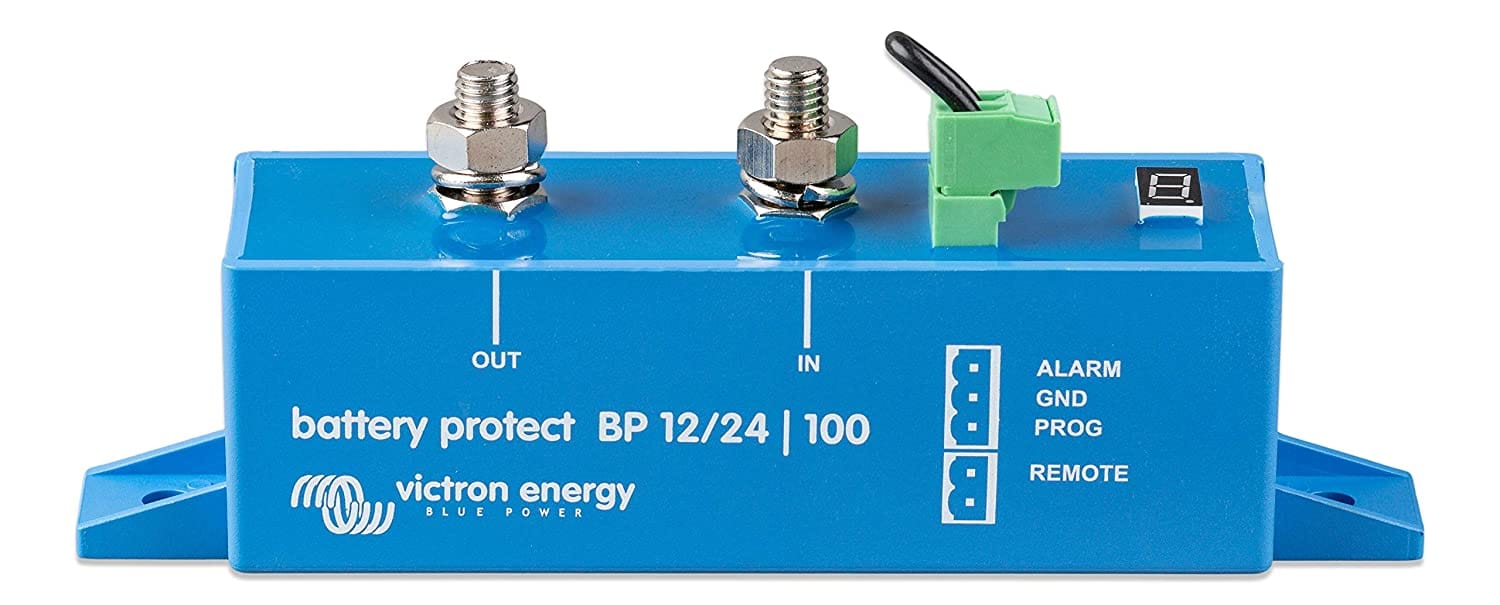

Victron Energy Smart BatteryProtect 12/24V 100A (BPR110022000)
SKU: 003278
In Stock
The Victron Smart BatteryProtect 12/24V 100A disconnects non-essential loads to prevent battery damage or engine-start failure, supports Bluetooth programming, Li-ion batteries, delayed alarms, and MOSFET switching for safe, reliable energy management.
£50.32
ex VAT £41.93
-
Description
The Smart BatteryProtect 12/24V 100A safeguards your battery by disconnecting non-essential loads before the battery is fully discharged or too weak to start the engine. It can also serve as a system on/off switch.
Key Features
12/24V auto-ranging: Automatically detects system voltage.
Bluetooth programming: Set custom engage/disengage levels or use nine predefined levels; Bluetooth can be disabled if required.
Overvoltage protection: Disconnects loads above 16.3V (12V) or 32.6V (24V) to protect sensitive devices.
Ignition-proof MOSFET switches: No sparks, safe for all systems.
Delayed alarm output: Activates if battery voltage stays below preset levels for over 12 seconds; suitable for buzzers, LEDs, or relays.
Li-ion compatible: Can be controlled via VE.Bus BMS; ultra-low current draw preserves battery life.
Delayed load disconnect/reconnect: 90-second disconnect delay prevents unnecessary shutdowns; reconnects 30 seconds after voltage recovers.
Monitor, configure, and update your Smart BatteryProtect via the VictronConnect app, with Bluetooth, USB, or WiFi/LAN connectivity, for complete control and diagnostics.
-
