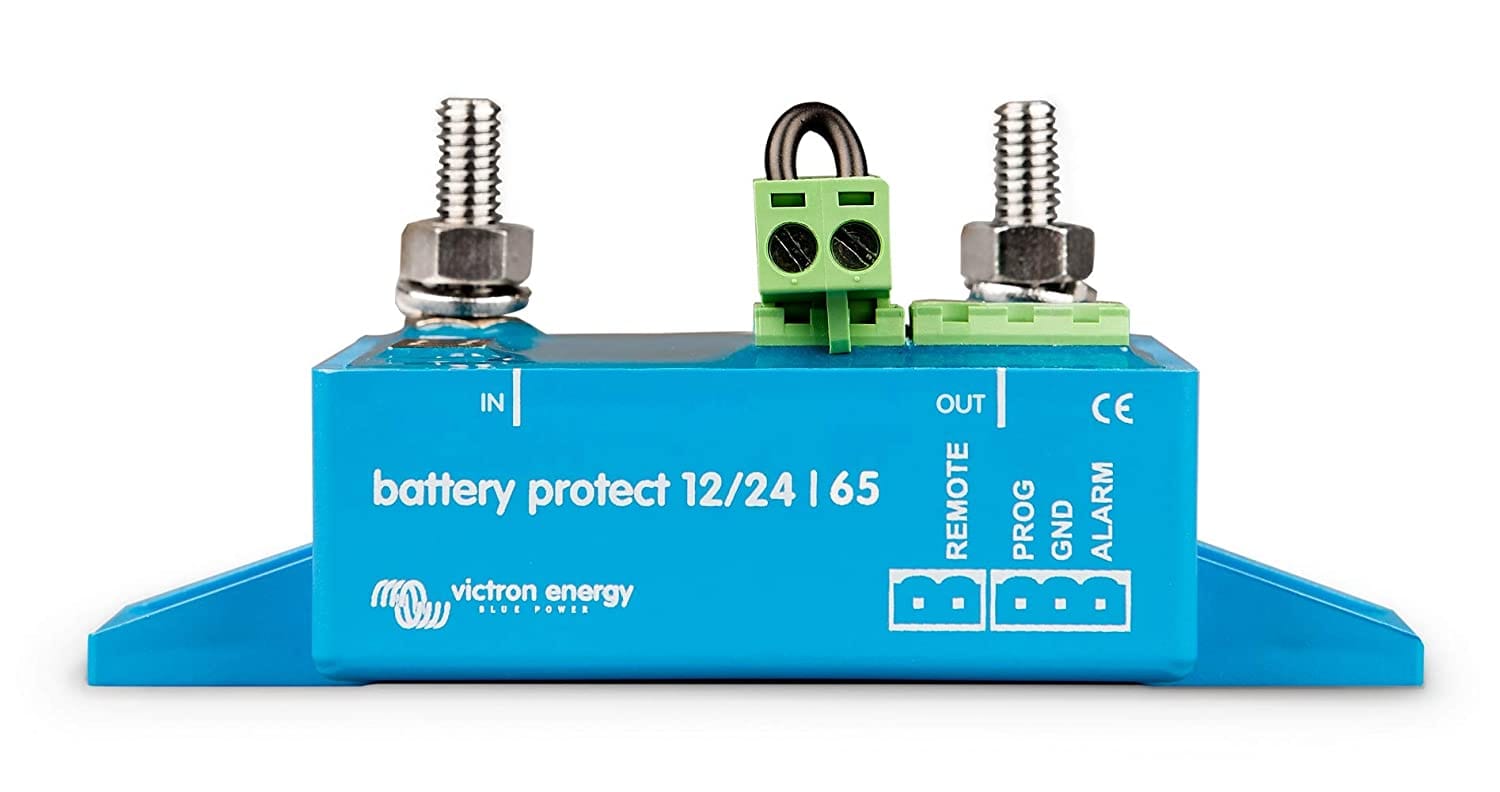

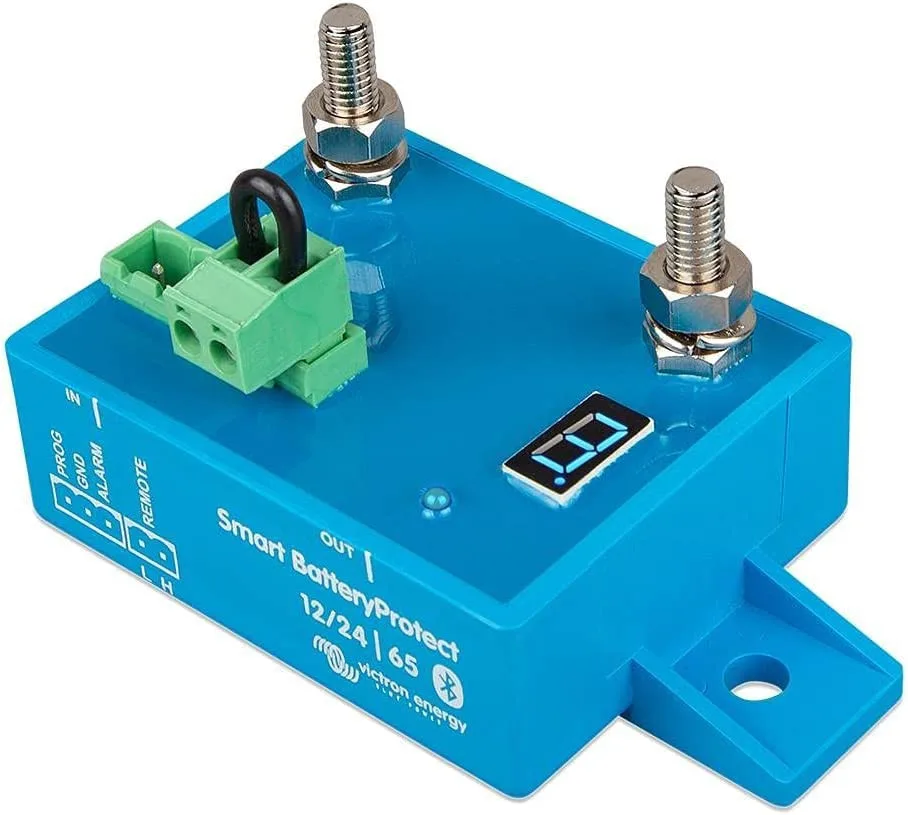

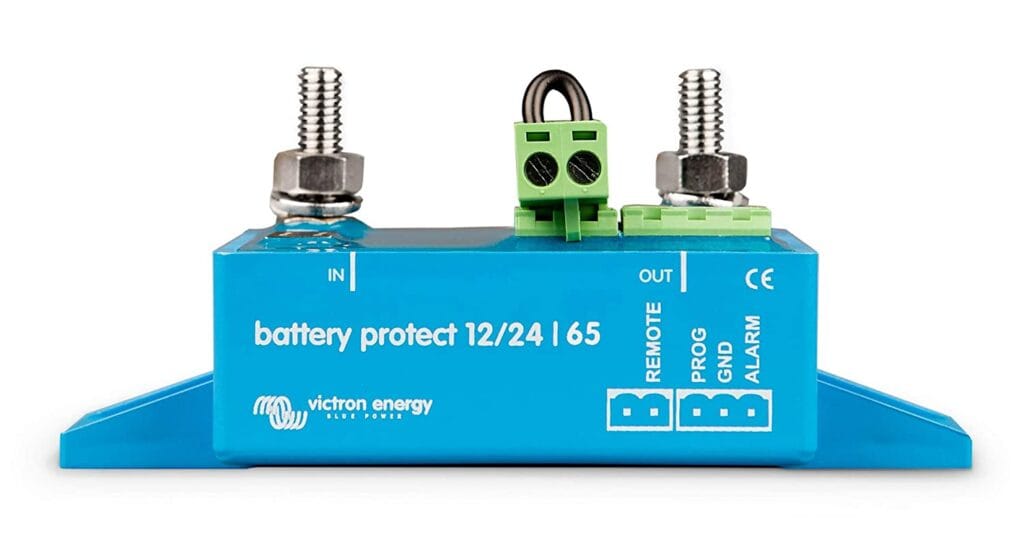

Victron Energy Smart BatteryProtect 12/24V 65A (BPR065022000)
SKU: 003276
In Stock
The Victron Smart BatteryProtect 12/24V 65A disconnects non-essential loads to prevent battery damage or engine-start failure, supports Bluetooth programming, Li-ion batteries, delayed alarms, and safe MOSFET switching for reliable energy management.
£38.47
ex VAT £32.06
-
Description
The Smart BatteryProtect 12/24V 65A safeguards your battery by disconnecting non-essential loads before it is fully discharged or too weak to start the engine. It can also act as a system on/off switch.
Key Features
12/24V auto-ranging: Automatically detects system voltage.
Bluetooth programming: Set custom engage/disengage levels or choose from nine predefined levels. Bluetooth can be disabled if required.
Overvoltage protection: Disconnects the load if DC voltage exceeds 16.3V (12V) or 32.6V (24V).
Ignition-proof MOSFET switches: No sparks, safe for sensitive systems.
Delayed alarm output: Activates if battery voltage drops below the preset level for over 12 seconds, suitable for buzzers, LEDs, or relays.
Li-ion compatible: Can be controlled by VE.Bus BMS; ultra-low current draw preserves Li-ion batteries.
Delayed load disconnect/reconnect: 90-second delay prevents unnecessary shutdowns; reconnects 30 seconds after voltage recovers.
Monitor, configure, update, and diagnose your Smart BatteryProtect easily via the VictronConnect app, using Bluetooth, USB, or network connections.
-
