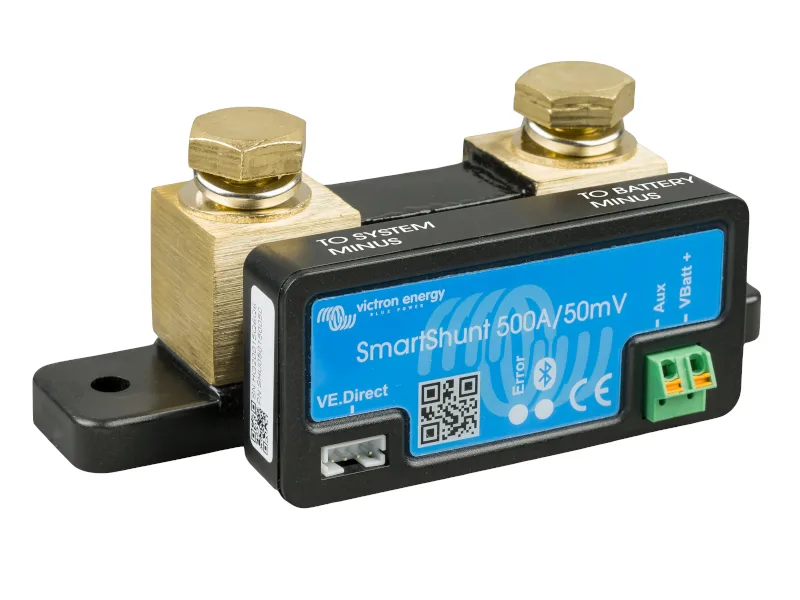

Victron SmartShunt 500A IP65 – SHU050150050

The SmartShunt IP65 500A is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Differences compared to BMV-712 Battery Monitor

– No programmable visual and audible alarm

– No programmable relay

Why should I monitor my battery with the SmartShunt IP65 500A?

Batteries are used in a wide variety of applications, mostly to store energy for later use. But how much energy is stored in the battery? No one can tell by just looking at it. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature. Monitoring the battery with a battery monitor will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life and the battery monitor will quickly pay for itself.

Key Features

• Product Code: SHU050150050
• Monitor battery voltage, current, state of charge, and time remaining
• Track historical data: deepest discharge, average discharge, charge cycles
• Waterproof and robust IP65-rated enclosure suitable for all environments
• Connect via Bluetooth with the VictronConnect app for easy monitoring on your smartphone or tablet
• Optional VE.Direct to USB interface for USB connectivity
• Compatible with GX devices for both local and remote monitoring via VRM portal
• Auxiliary input for second battery or midpoint voltage monitoring
• Seamless integration with Victron solar chargers and select AC chargers via VE.Smart networking
• No visual or audible alarm; notifications via VictronConnect app or GX device

• H46 x W120 x D54mm
• 5 year warranty
• Connects to the VictronConnect app via Bluetooth for real-time battery monitoring, displaying parameters like state of charge and historical data.
• No display required; reduces wiring and clutter for cleaner installations.
• Can also be connected to GX devices via VE.Direct cable
