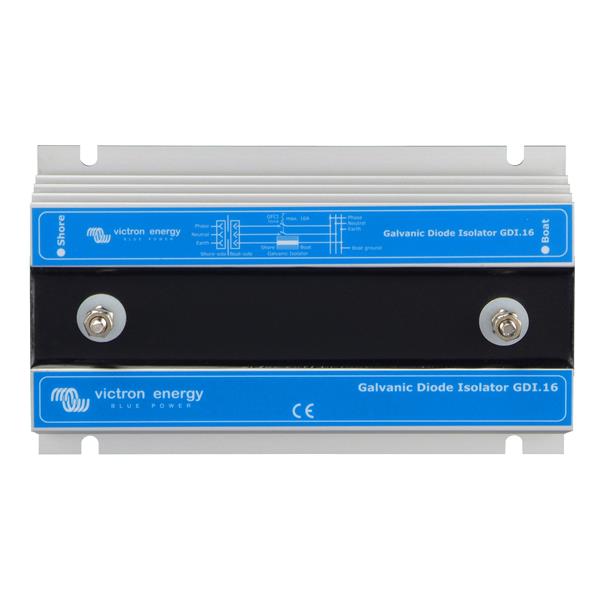

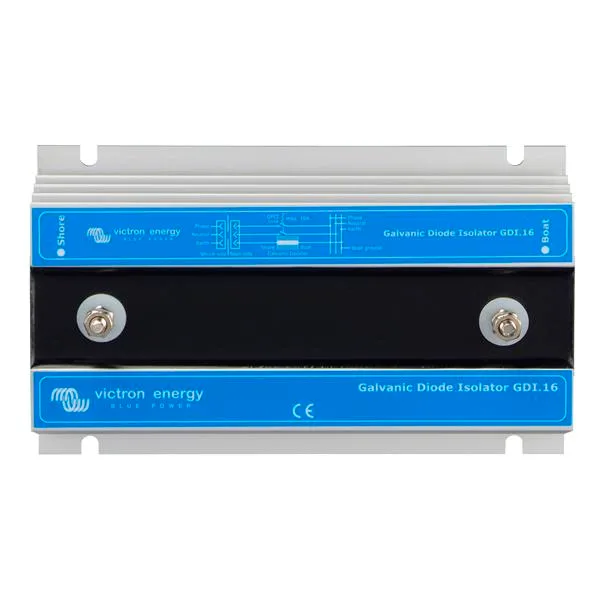

Victron Galvanic Isolator VDI-16 A – GDI000016000
SKU: 003253
In Stock
The Victron Energy Galvanic Isolator VDI‑16 (GDI000016000) protects boats from galvanic corrosion by blocking low-level DC currents while allowing AC shore power, ensuring durable, safer electrical connections without needing maintenance.
£88.99
ex VAT £74.16
-
Description
This Victron Product benefits from a 5 year warranty
The Victron Galvanic Isolator VDI-16A prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.
The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.
The isolator is installed directly behind your boat’s 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
Brand Victron Energy Manufacturer Part Number GDI000016000 gtin 8719076022374 Peak Current (20 ms) 1600 A Max. Current 16 A Connection M6 Protection Category IP67 Dimensions H60 x W120 x D200mm Weight 1.0Kg Warranty 5 Years Country of Manufacture Netherlands -
