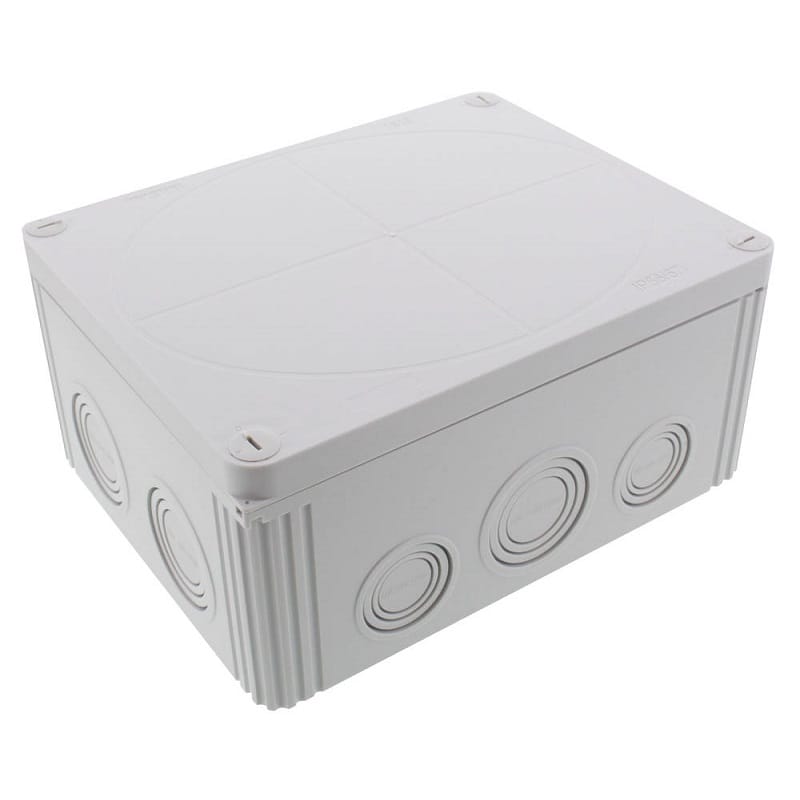

Wiska Combi 1610 10110735 Grey Enclosure

The Wiska Combi 1610 10110735 is a robust, light grey junction box designed for industrial and electrical applications requiring secure cable management and protection. It measures 200 x 160 x 94 mm and is made from durable polycarbonate with a polyurethane sealing gasket, providing excellent resistance to dust and water.

This enclosure offers high ingress protection with IP66 and IP67 ratings, ensuring it can withstand harsh environments including exposure to dust, water jets, and temporary immersion. It operates reliably in temperatures ranging from -30°C to +100°C and is designed for installation in environments between -5°C and +60°C.

The box features multiple cable entry points with 10 knockouts on the sides and 2 on the bottom, accommodating various cable sizes and making it versatile for different wiring needs. It also includes 3 QUIXX membrane spouts for cable diameters ranging from 6 to 28 mm, enhancing sealing around cables.

For secure mounting, the enclosure has 4 internal mounting openings located outside the sealing area, ensuring easy and safe installation without compromising protection. It is rated for voltages up to 690 V and passes a 960°C glow wire test, demonstrating its fire resistance and suitability for demanding electrical environments.

Overall, the Wiska Combi 1610 provides reliable protection and flexibility for a wide range of electrical and industrial applications, ensuring safe and durable housing for critical connections.
