Free Delivery
Over £60 Ex VAT

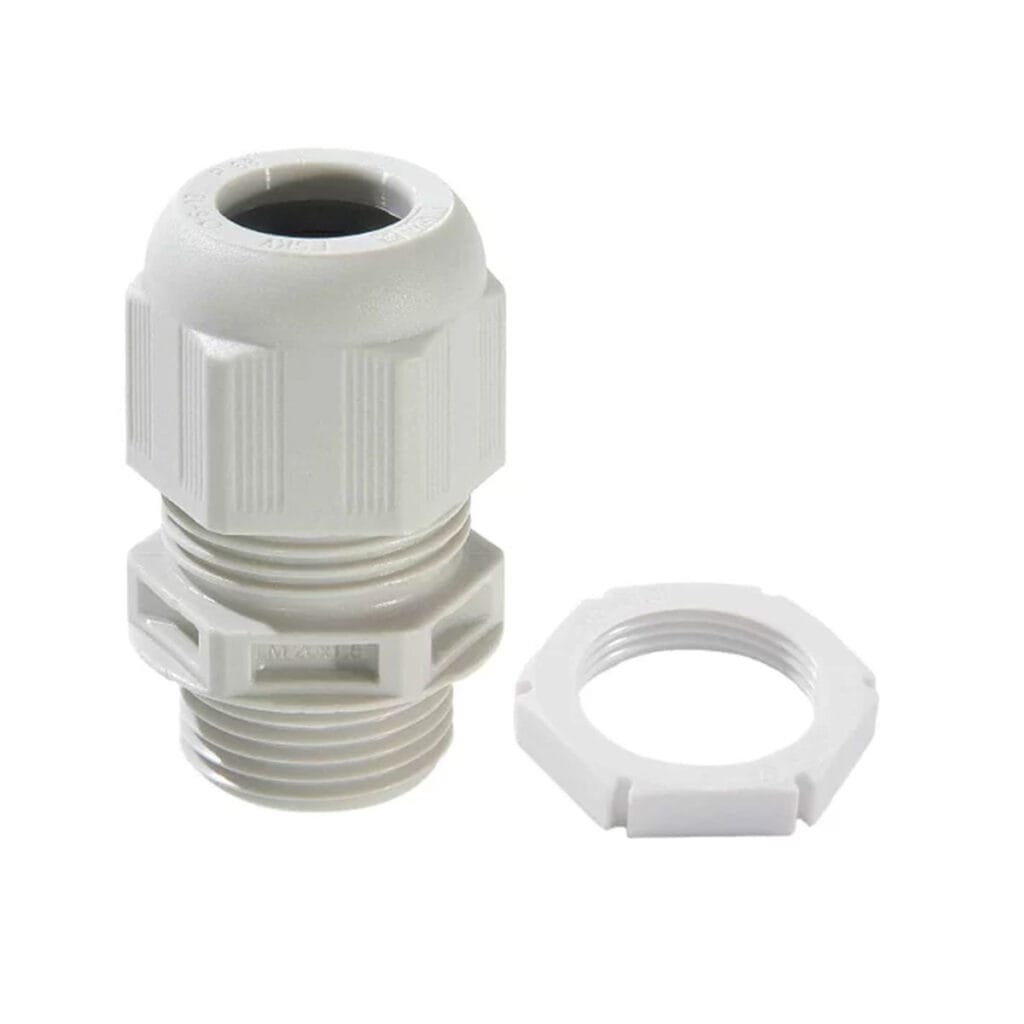

Wiska GLP20+ 10100611 Gland in White
SKU: 003282
In Stock
The Wiska GLP20+ White is a durable M20 cable gland with IP68/IP69 protection, sealing cables 7.5–14 mm, made of polyamide with EPDM gasket, rated for –40°C to +100°C and glow-wire tested.
£2.50
ex VAT £2.08
-
Description
The Wiska GLP20+ White (Order No. 10100611) is a high-performance cable gland crafted for demanding electrical installations. Made from robust polyamide with an EPDM sealing gasket, it delivers top-tier ingress protection—IP68 (5 bar for 30 minutes) and IP69—ensuring a tight seal even under water pressure. Designed for M20 threads, it fits cables from 7.5 mm up to 14 mm diameter with secure anchorage and includes a locknut for reliable installation.
Operating across a wide temperature range from –40 °C to +100 °C, it even withstands glow-wire testing at 750 °C. The gland requires installation torque of approximately 4 N·m for the body and 3 N·m for the cap nut, and features a 24 mm wrench key width and total length between 36 mm and 45 mm. Finished in RAL 9001 white, it offers both reliability and neat aesthetics for outdoor, marine, and industrial environments.
-
Additional information
Additional information
Brand
