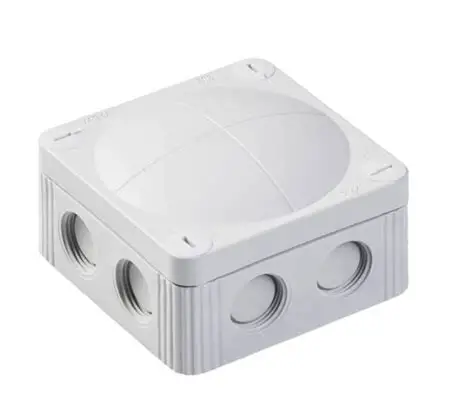

Wiska WI308 10060400 Enclosure Grey IP66

The Wiska WI308 grey enclosure (order number 10060400) is a robust, IP66-rated junction box crafted in light-grey RAL 7035 polypropylene with a TPE gasket for reliable sealing. It measures 85 × 85 × 51 mm and can achieve IP67 protection when used with Wiska ESKV cable glands. Designed with eight M20 threaded membrane entries, it supports cable diameters from 3 mm to 12 mm and circuits up to 400 V with a maximum conductor size of 4 mm² .

Engineered for demanding environments, this enclosure operates across a temperature range of –30 °C to 100 °C (installation recommended between –5 °C and 60 °C) and is glow-wire tested up to 750 °C for fire safety compliance . It includes four internal mounting points located outside the sealing zone and secures with captive cover screws. Supplied empty (no terminals or mounting plate), the WI308 is ideal for flexible, custom electrical installations where durability and ingress protection are essential .
