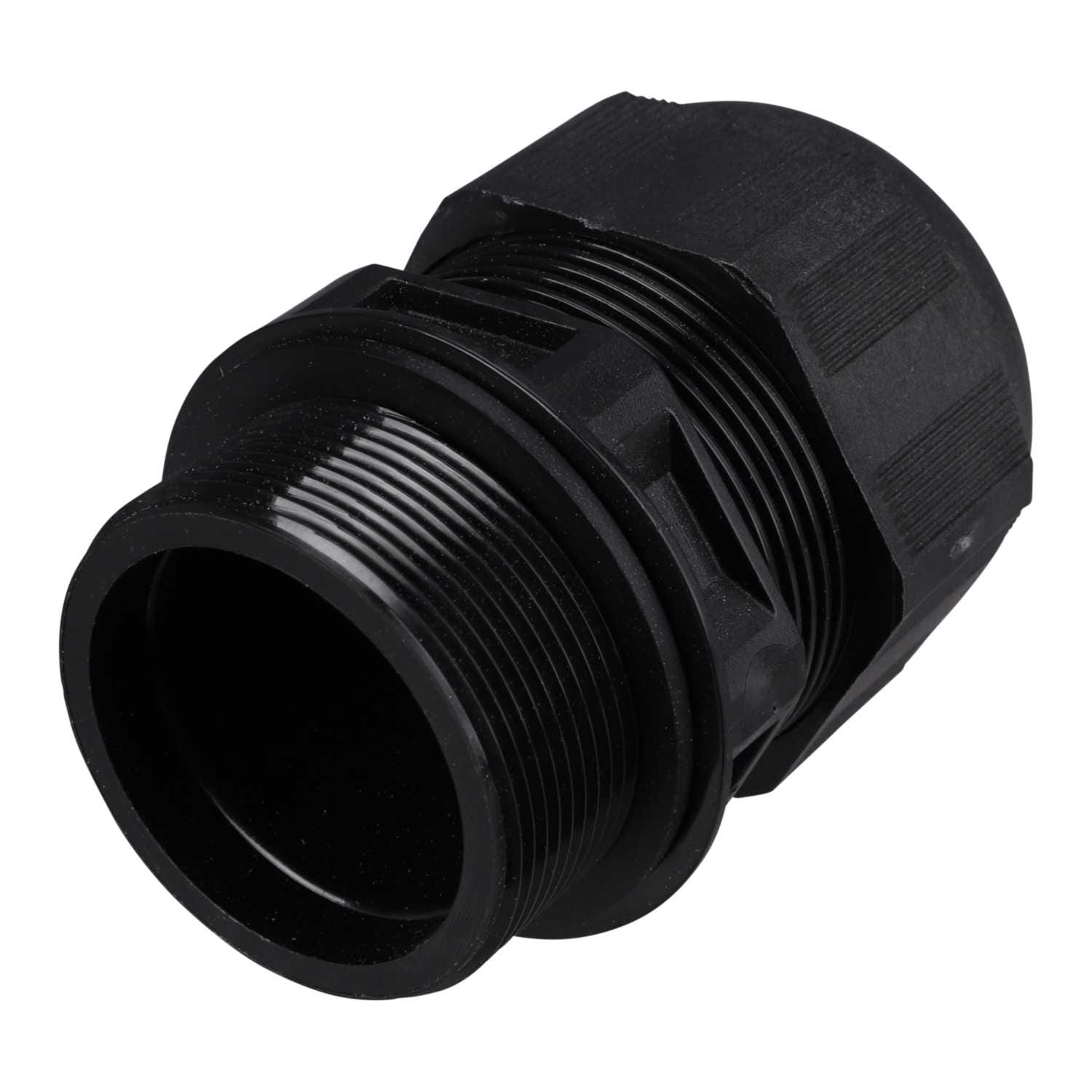

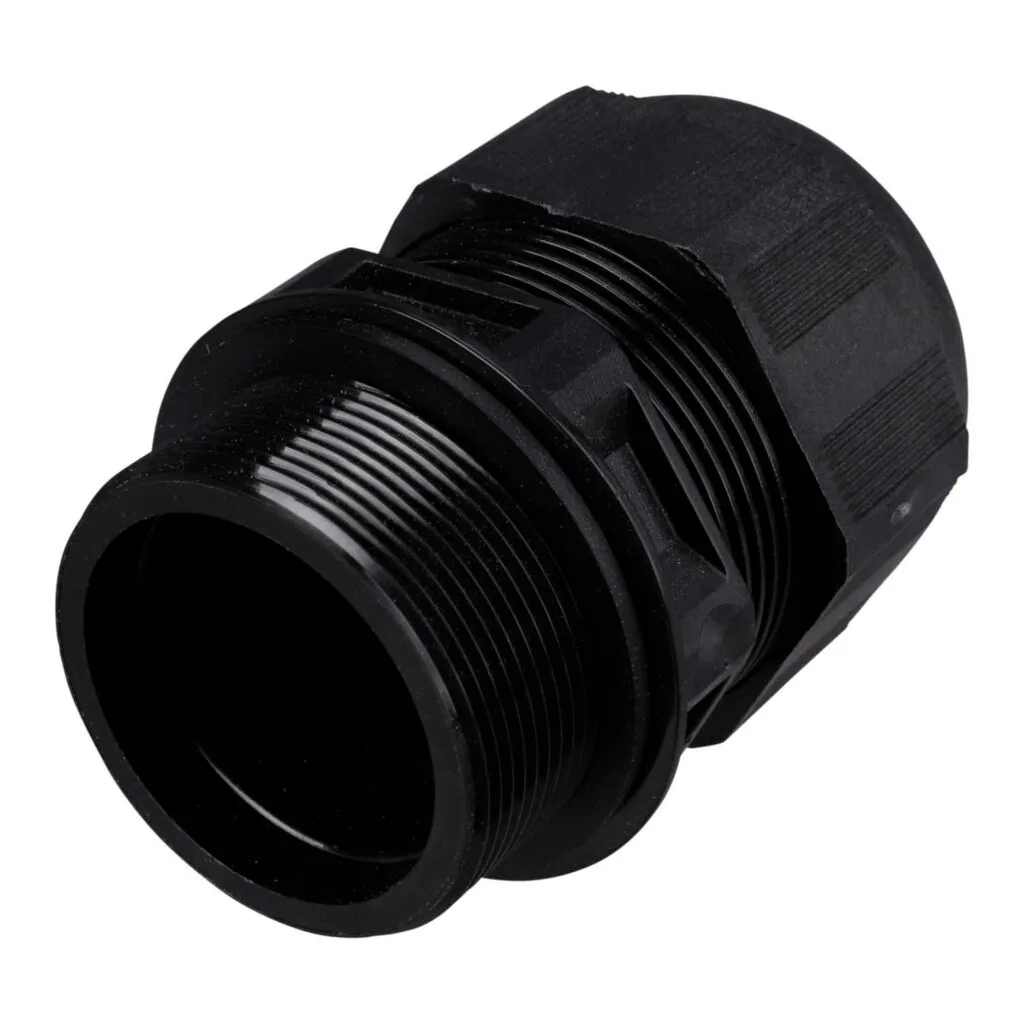

Wiska WIESKV40 10066125 Gland 40mm IP68 Black

The Wiska WIESKV40 10066125 is a high-performance cable gland designed for 40mm cables, offering robust sealing and strain relief in demanding environments. Constructed from durable black polyamide (PA6), this gland ensures long-lasting protection against mechanical stress and environmental factors.

Key Features:

• Ingress Protection: IP68 (5 bar, 30 minutes) and IP69K ratings provide superior resistance to dust and water ingress, making it suitable for harsh industrial and outdoor applications.

• Temperature Range: Operates effectively within a temperature range of -40°C to +100°C, accommodating various environmental conditions.

• Sealing Technology: Equipped with Wiska’s patented lamella system and a connection thread sealing ring, it ensures optimal sealing and strain relief, preventing cable damage.

• Material Composition: The gland is made from polyamide (PA6) with an EPDM sealing gasket, offering excellent resistance to water, ozone, UV radiation, and chemicals.

• Thread Specifications: Features an M40 x 1.5 thread with a short screw-in length of 12mm, suitable for various cable diameters ranging from 16mm to 28mm.

• Vibration Resistance: The self-locking cap nut thread provides vibration protection and prevents overtightening, ensuring secure installation.

• Glow Wire Test: Undergoes a glow wire test at 750°C, confirming its flame-retardant properties.

• Compliance: Halogen-free construction aligns with environmental safety standards.

This cable gland is ideal for applications requiring high ingress protection and durability, such as marine, industrial, and outdoor electrical installations.
