Blue Sea Systems 1016200 12/24V Dual USB 2.1A Charger – White
SKU: 001529
In Stock

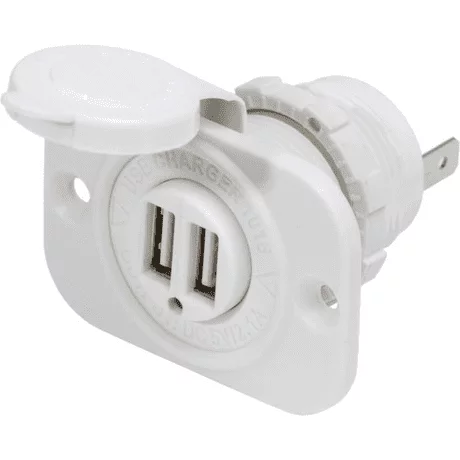

Blue Sea Systems 1016200 12/24V Dual USB 2.1A Charger - White
£19.95
ex VAT £16.63
This product is available to trade account holders. Sign up for a trade account or submit an enquiry for pricing.
-
Description
Dual USB Charger from Bluesea Systems. Offers the ability to charge 2 mobile devices. Is easilly installed in existing 12v DC socket hole for your convenience. Is ideal for the Marine world as its conformal coated circuit board offers great protection, along with its protective cap keeps moisture and debris out. It features internal fusing and is compatible with most popular mobile devises. Supplied in White, its input voltage is 12v/24v DC. Input voltage range 9v-32v DC. Output voltage is 5V DC ± 5%.
Charge two mobile devices on the go
Made with corrosion resistant materials which ensure a solid contact and low voltage drop.
- Fits in same mounting hole as a traditional 12 Volt outlet
- Compatible with most mobile devices including Apple® products
- Protective dust cap with tether keeps dust and spray from shortening the life of the charger
- Potted for the harsh marine environment
- 2A Supply fuse is not included
Easy to install in existing 12V DC socket hole providing convenient access for charging mobile devices
Dimensioned Drawing
Socket Dimensioned Drawing
Installation InstructionsMaximum Output Current 2.1A DC (total) Input Voltage 24V
12V DCOutput Voltage 5V DC +/- 5% Cut Out Dimensions 1 1⁄8 in (28.58 mm) dia. hole Input Voltage Range 9-32V DC IP Rating IP45 (with cover closed) Parasitic Current Draw 15mA DC Reverse Polarity Protection Yes Short Circuit Protection Yes Thermal Overload Protection Yes Weight 0.10lb (0.05 kg) -
