Scanstrut Vertical Cable Seal DS21B-P 9mm-14mm

Designed for cables from 9-14mm (0.16″-0.35″) and connectors up to Ø21mm (0.83″). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.

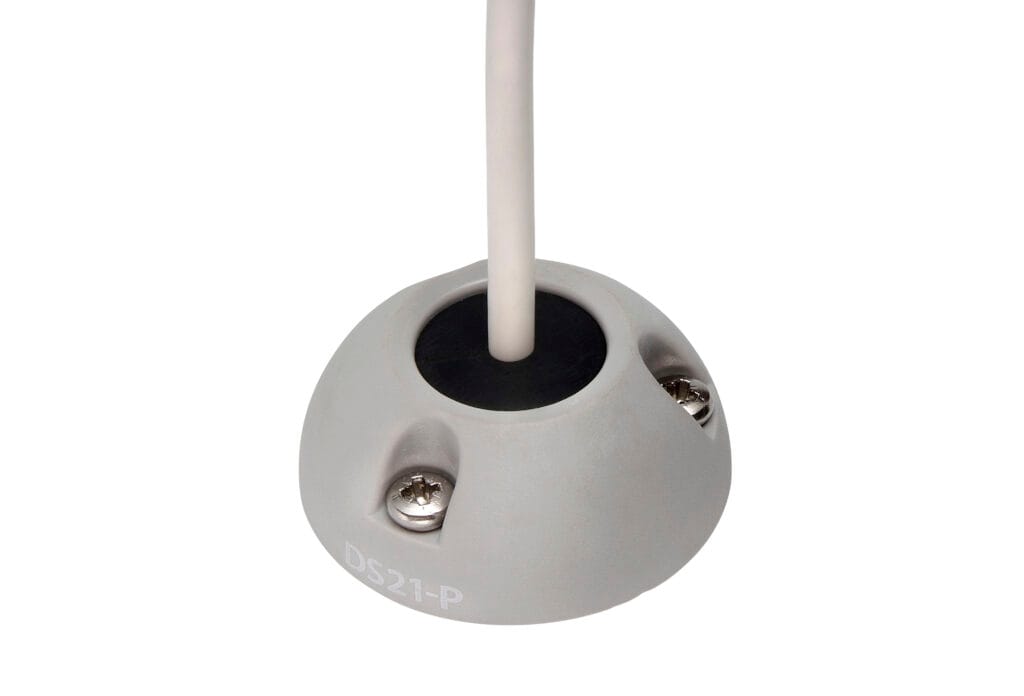

Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.

Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.

Easy and Reliable Installation

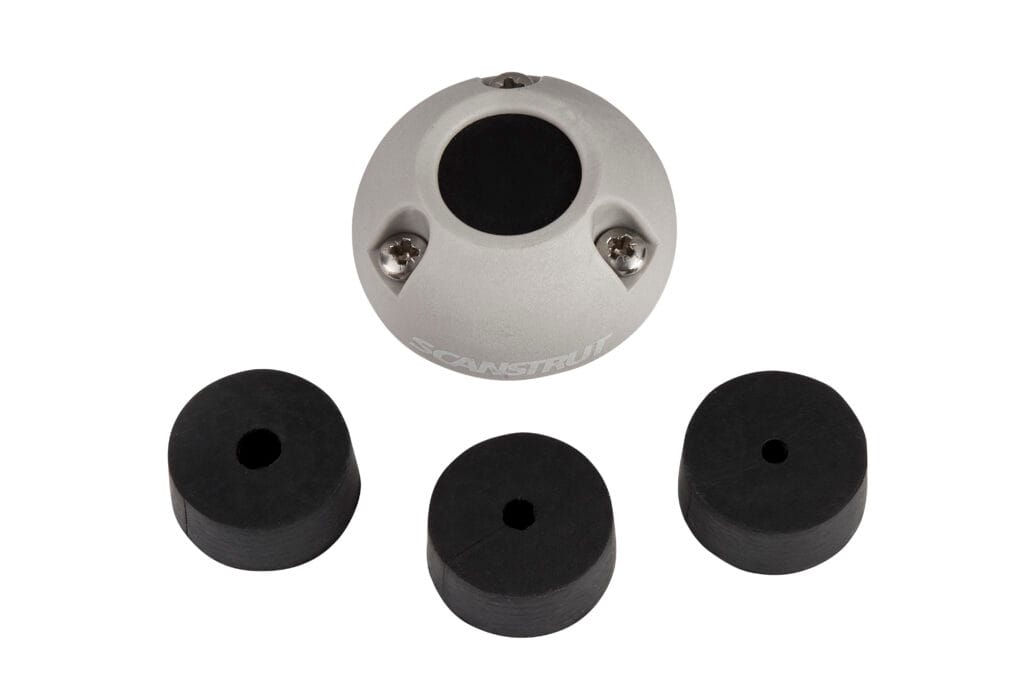

Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

Split Bungs

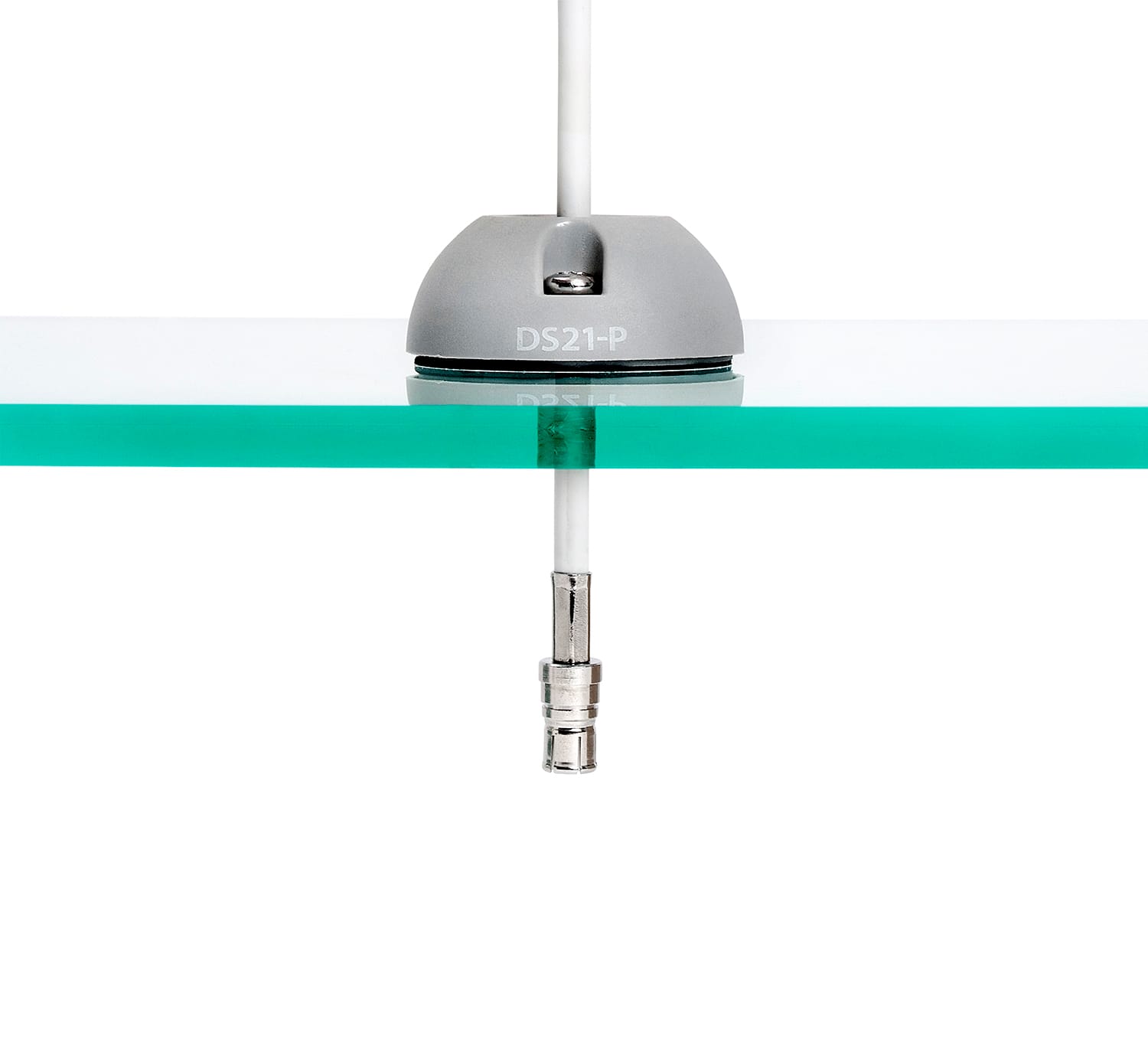

The split-seal option makes installation even easier, as it doesnot require connectors up to Ø21mm (0.82″) to be removed during installation.

Key Features

• IP68 waterproof rated
• Made from premium marine-grade UV-stable materials
• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Captive nuts ensure an easy and reliable repeat installation
• No messy sealant on bungs
• Split bungs for ease of installation
• Install connectors up to Ø21mm (0.82″) in diameter
• Fully customizable with self-drill bung options

• DS21B-P Installation Instructions
• DS21B-P Technical Drawing
