Scanstrut Active 15W SC-CW-04G Dock. Charge. Connect

The IPX6 waterproof 12/24V Qi certified waterproof wireless charging range enables wireless charging for the outdoor environment, without the need for phone charging cables. Designed from the ground up, this is the world’s first waterproof wireless charge system created specifically for use onboard, with the unique technology is housed in an IPX6, fully encapsulated and sealed unit.

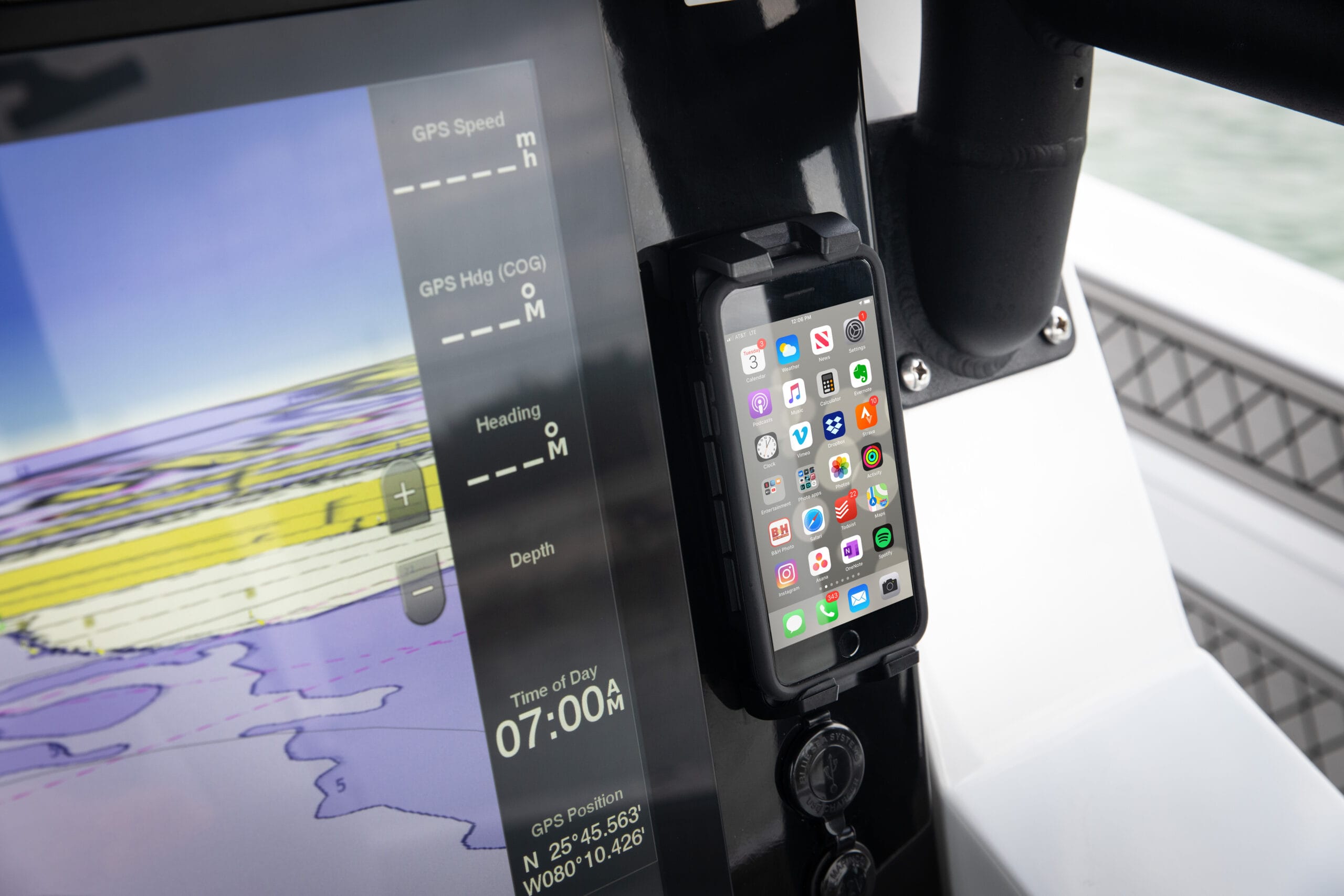

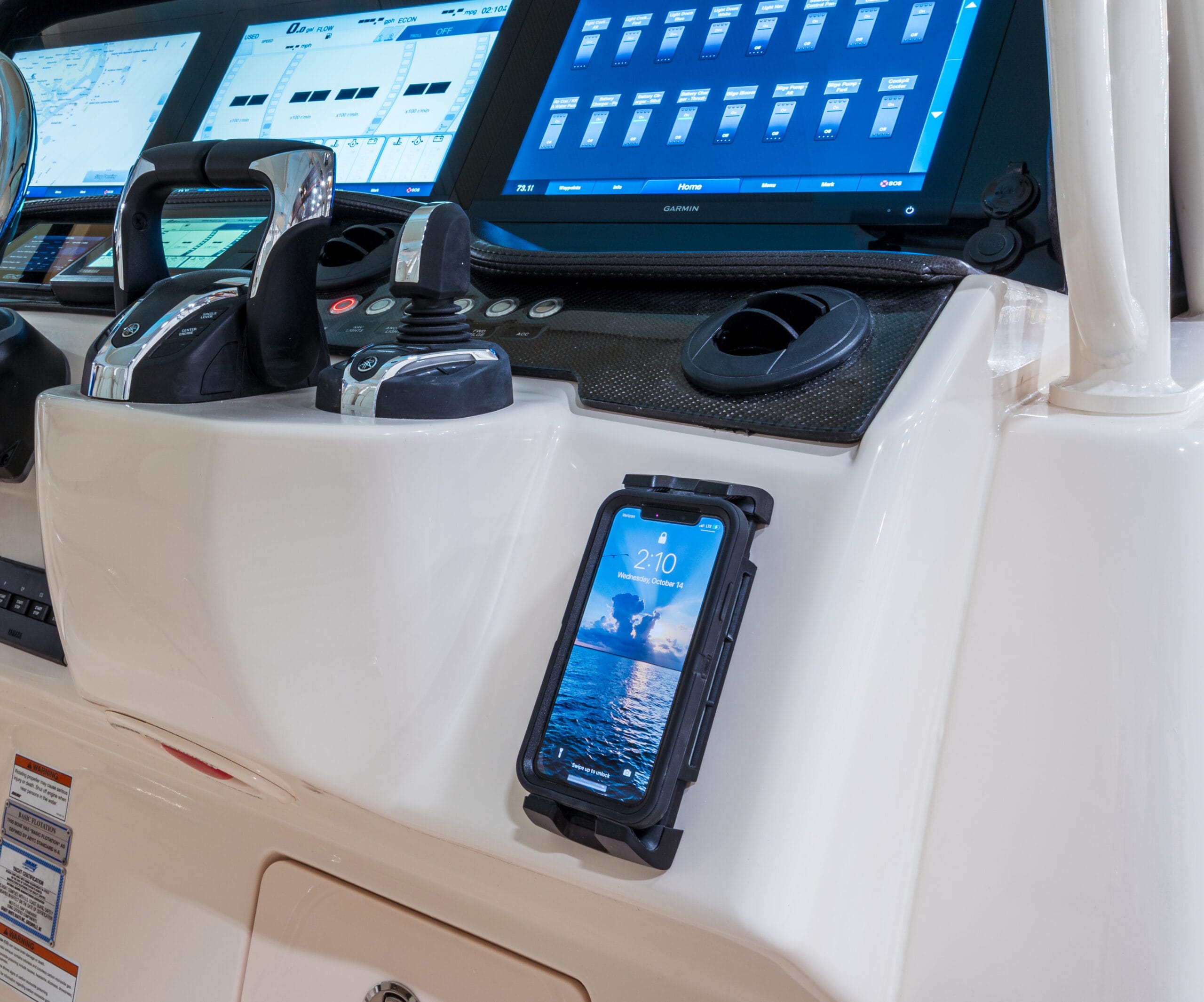

Perfect for boat consoles or any vehicle working outside in the elements, the simple one-handed operation allows you to easily dock your phone and instantly start charging. No connection needed.

The high-grip, self-aligning jaws ensure your phone is held tightly and in the optimum charging position every time.

Featuring Qi-certified wireless charging technology and a “Smart” LED that indicates when your phone is charging. Throw in foreign object detection and thermal cut-off and you’re guaranteed safe, reliable charging in all environments.

Compatible with wireless charging enabled phones of all sizes from all major brands including Samsung, Apple and many more. Charging is also possible through non-metallic, waterproof cases.

Our improvements don’t just stop there, now featuring easier phone alignment with a larger charging area, and electrical componentry that has been enhanced to significantly improve your phone’s charge times, even in the harshest outdoor environments.

With the same great look, Active 15W is tried and tested in all corners of the globe in all weathers, and conditions.

Testing
Active has been subjected to our harshest environmental, vibration, impact and on-water testing programs. This is combined with our world-renowned expertise in waterproofing technologies, UV stabilization techniques and premium grade materials to ensure Active is the best and only choice to make when it comes to mounting and wirelessly charging your phone outdoors.

Installation
Installation is simple on any boat, RV, ATV or outdoor location. Four screws secure the unit onto any flat surface with a simple installation guide and drilling template. A waterproof cable pass-through completes the IPX6 sealed installation. The charger is easy to clean and can be washed down with fresh water.

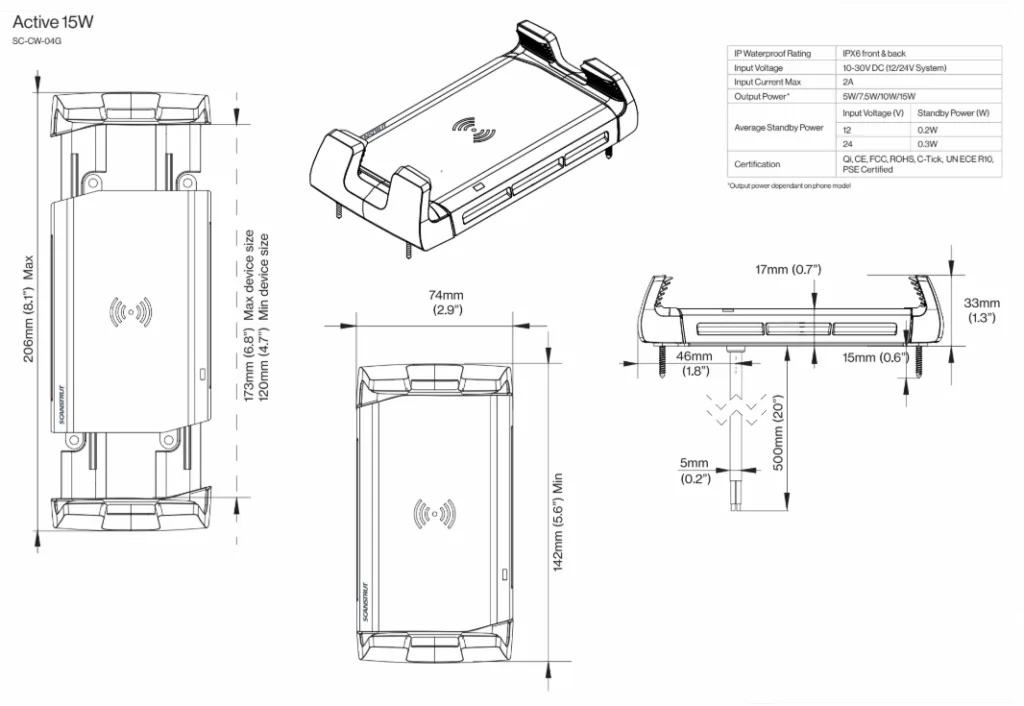

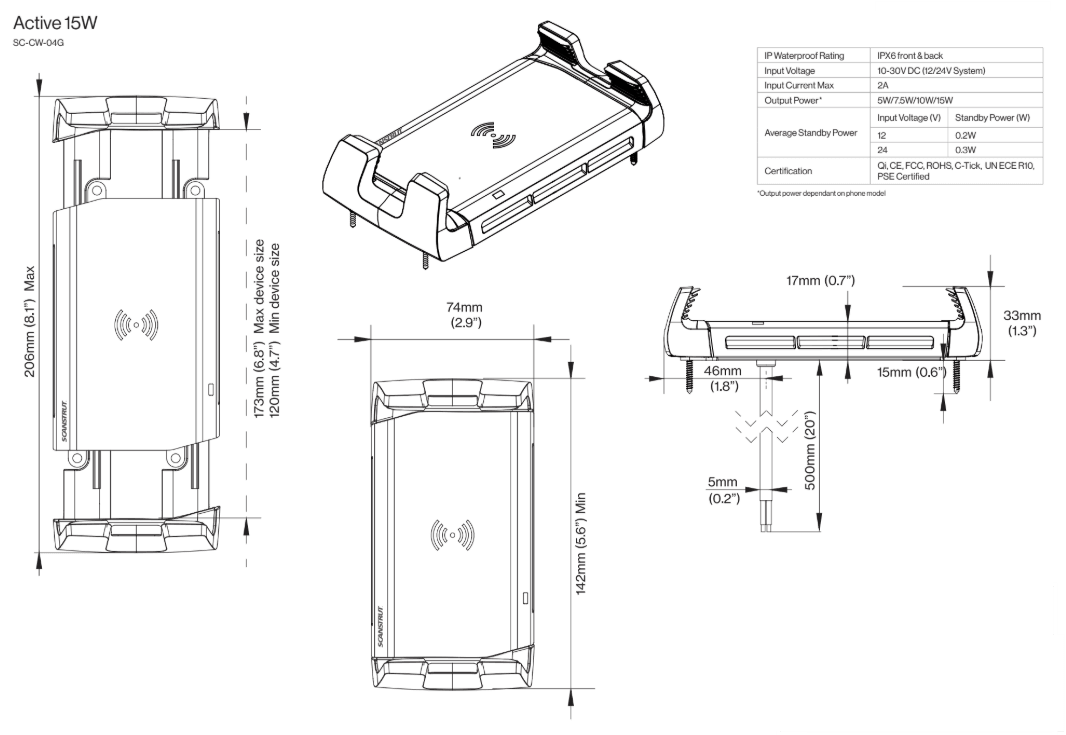

• SC-CW-04G – Technical Information
• SC-CW-04G Installation Instruction

Key Features

• 15W Fast Charging
• IPX6 Waterproof
• Qi Certified
• Mount & charge
• High friction grip
• Single-handed docking
