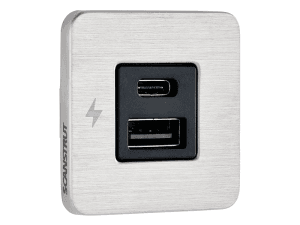

Scanstrut SC-TILE-11 USB-A & C Interior Charging Socket – Stainless Steel

TILE Series offers sleek, high-performance charging solutions designed specifically for marine interiors.

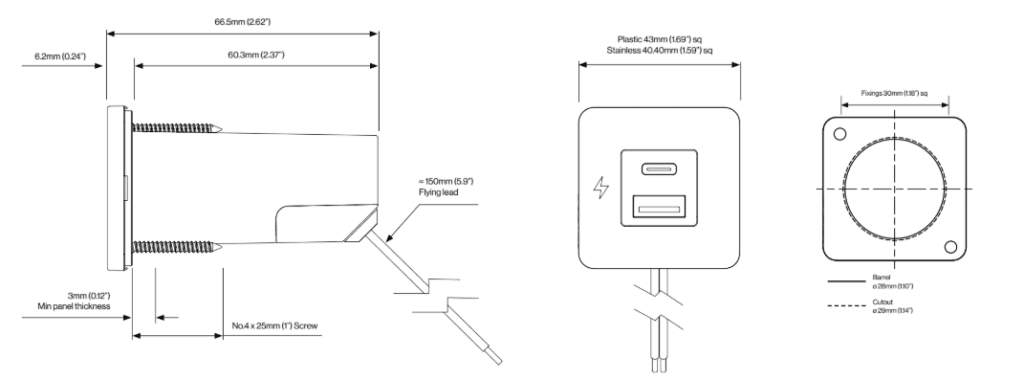

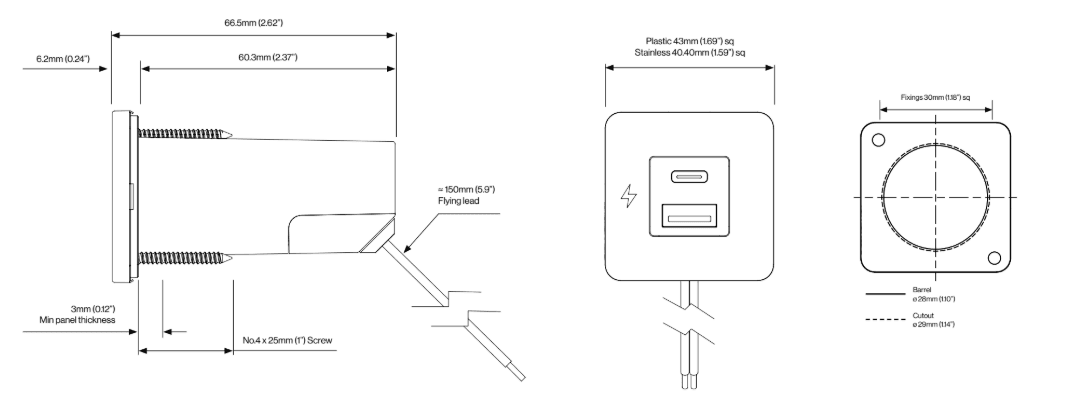

The Scanstrut TILE Series offers sleek, high-performance charging solutions designed specifically for marine interiors. These chargers blend seamlessly into luxury marine environments. Featuring a compact 40mm (1.57”) footprint and requiring just a 29mm (1.14”) hole saw for easy installation, the TILE Series combines functionality and style, making it the ideal choice for modernising your vessel’s interior. Enhance your boat’s space with this practical, sophisticated solution for charging your everyday devices.

• 12V & 24V
• USB-A and USB-C
• Ultra-low profile

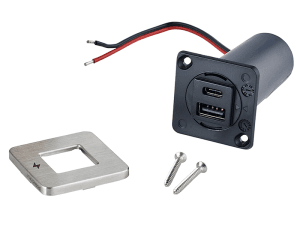

• Front fit
• Tiny footprint
• Available in 316 stainless steel or matt black
• Conformal coated electronics, protected against moisture
• Modernise your boat’s interiors

Tile USB is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets, phones and any other USB-C powered devices onboard.

USB–C output
60W max on 24V system
36W max on 12V system

Universal
Universal fit for any USB-C connectors.
Fast charge (60W max) up to 2 devices at a time.

Important information
To maximize charge performance, use the cable supplied with your tablet, phone etc. (C to C, or C-lightning) Phones charge at the same speed on either a12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.

⚠ WARNING
TILE USB products are designed for interior use only. Do not install in locations where water exposure is possible, as this may lead to product failure.

Electrical Information

Additional information
