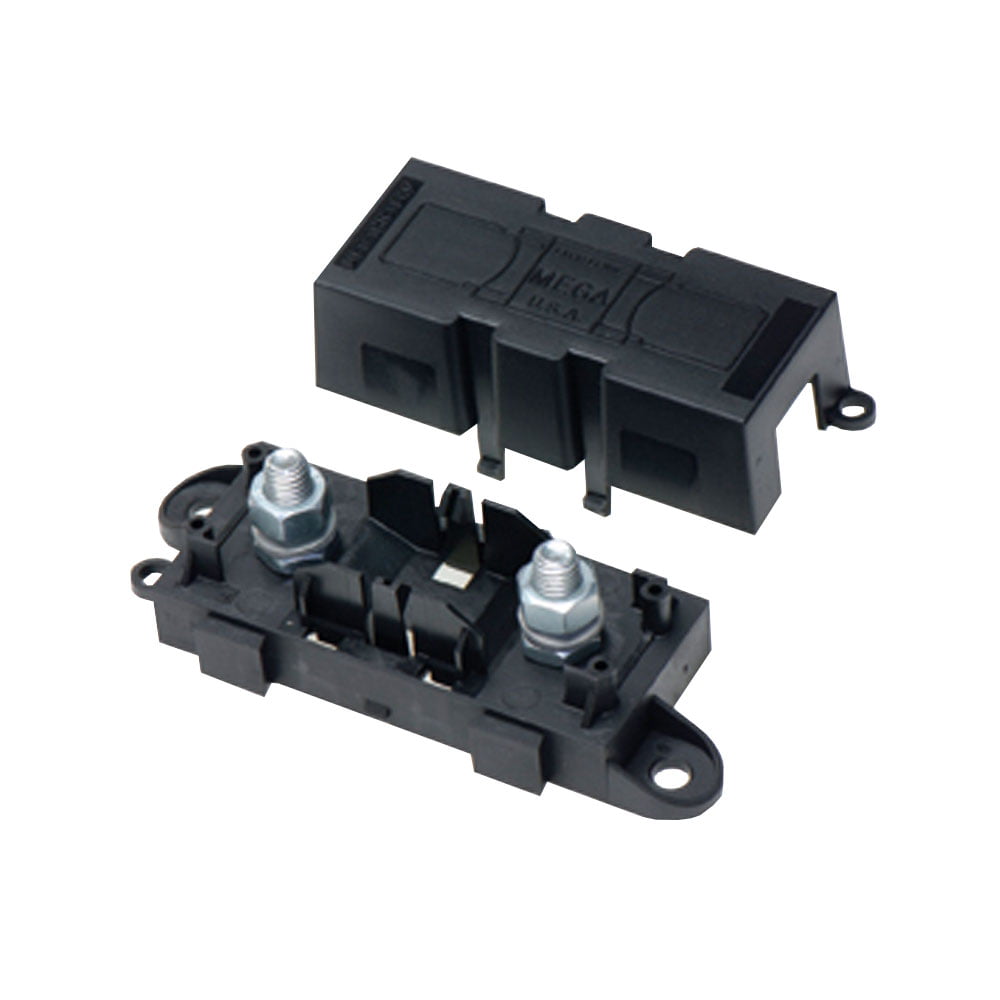

Individual Mega Fuse holder

Individual Fuse Holder. Accepts Mega Fuses (we can also supply) Cable connections are made using the 2 x 8mm studs. The Fuse Holder can be fixed to a firm surface using fixing points located at the ends of the unit. Multiples of this Fuse Holder can be clipped together to form a fuse block.

Individual fuse holder for mega fuses, suitable for panel mount applications. The cable connections are made using the 2 x 8mm studs, and the holder can be mounted onto a firm surface using the 2 fixing points located at the ends of the unit. The design allows multiple holders to be clipped together to form a fuse block.

• Colour: black
• Voltage rating: 32VDC
• Current rating: 500A
• Cable size: 70mm2 max
• Fixing hole diameter: 6.0mm
• Includes M8 studs, nuts and washers
• Dimensions: 96.5 x 39 x 39mm (L x W x H)
